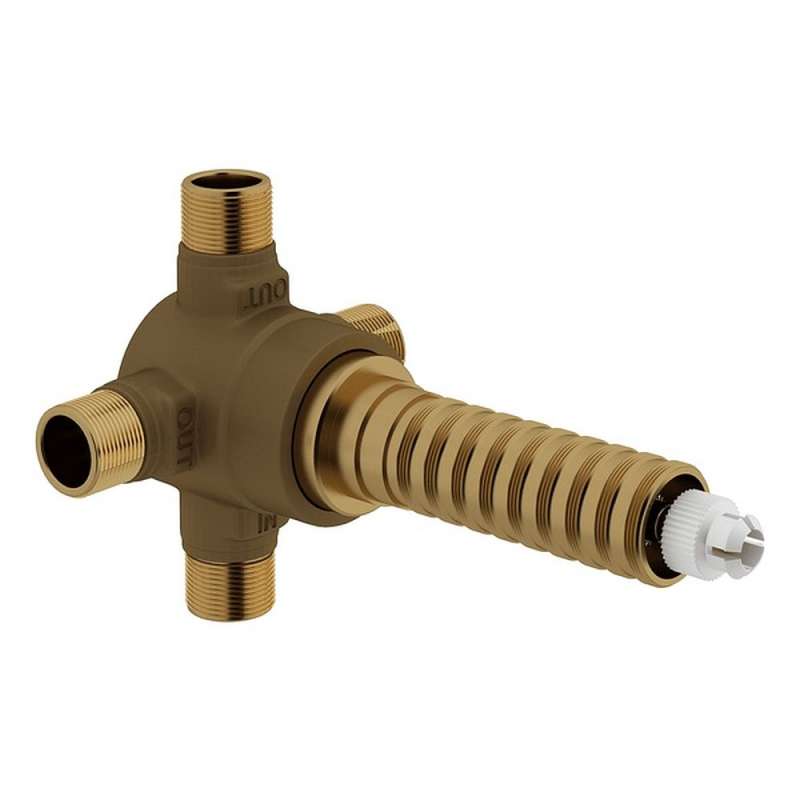

4-Port, 3-Way Dedicated Diverter Rough Valve
- In Stock
- Brand: Rohl
- Model # R1062BO
- Must use with volume control(s) or pressure balance systems
- Ceramic disc control cartridge
- 1/2"M NPT inlet, 3 x 1/2"M NPT outlets
- Flow is dedicated. May not be split into two outlets at once.
- 2-function operation available, order 9.13862 for alternate cartridge
- Outlets may be capped if not used
- CALGreen compliant
- 5 GPM
- Min. depth is 2-3/16" from the center of the outlet
- Max. depth is 4-11/16" from the center of the outlet
- Includes 2-5/8" extension kit.
- Extension may be cut to length required.
- Must order trim to complete
- Hole Configuration: 1
- Mounting Location: Wall
- Installation Type: Wall
- Limited lifetime warranty
| Guides & Documents | Spec Sheet Warranty Sheet |
| Brand | Rohl |
| Length (in) | 4.5 |
| Material | Brass |
| Stock Status | In Stock |
| Diverter Included | Yes |
| Flow Rate (GPM) | 5 |
