SMM_SMEPRK64-1-M
- In Production
- Brand: Samuel Mueller
- Model # SMEPRK64-1-M
-
Brushed Nickel -
Polished Chrome

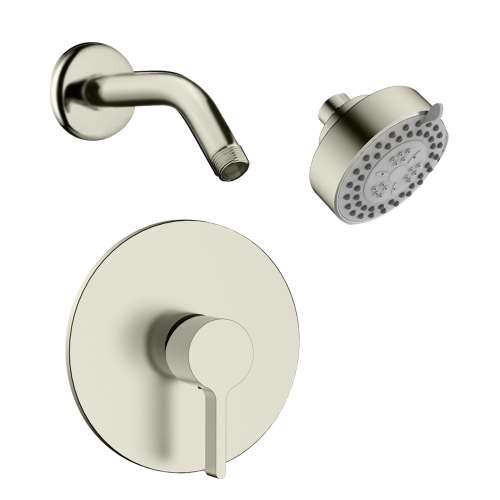

- Kit includes: (1) 4-in showerhead, (1) 6-in shower arm, and (1) single function pressure balance valve and trim
- Showerhead: Evanna three function 3.75-in diameter round ABS showerhead
- Showerhead spray modes: outer rain, central rain, and outer rain+central rain
- 2.5 gpm showerhead flow rate
- Shower arm: Basic 5.375-in long round stainless steel shower arm with 2.375-in diameter round stainless steel flange cover
- Valve and trim: Theo single function round style pressure balance valve and trim with ADA compliant lever handle; solid brass with plastic built-in box
- Valve and trim has screw stop to adjust water flow rate and ceramic cartridge
- Lifetime Limited Residential Warranty / 1-Year Limited Commercial Warranty
| Guides & Documents | Spec Sheet Installation PDF |
| Product Type | Pressure Balance Shower Set |
| Collection | Evanna |
| Width (in) | 4 |
| Length (in) | 6 |
| Height (in) | 4 |
| Material | Stainless steel/Brass |
| Shape | Round |
| Weight (lb) | 14 |
| Warranty | Lifetime Limited Residential Warranty / 1-Year Limited Commercial Warranty |
| Ada Compliant | Yes |
| Body Sprays Included | No |
| Cartridge Type | Ceramic |
| Component(s) Included | 4-in showerhead, 6-in shower arm, valve trim |
| Connection Size (in) | 0.5 |
| Connection Type | G |
| Diverter Included | No |
| Escutcheon Diameter (in) | 7 |
| Escutcheon Included | Yes |
| Flow Rate (GPM) | 2.5 |
| Hand Shower Included | No |
| Hose Included | No |
| Inlet Diameter (in) | 0.5 |
| Inlet Thread Type | NPT |
| Integrated Diverter | No |
| Number of Functions | 1 |
| Number of Handles | 1 |
| Number of Spray Settings | 3 |
| Pause Control | No |
| Pressure Balanced | Yes |
| Residential/Commercial | Residential and Commercial |
| Shower Arm Reach (in) | 6 |
| Shower Head Diameter (in) | 4 |
| Shower Head Flow Rate (GPM) | 2.5 |
| Shower Head Functions | Multi-Function |
| Shower Head Included | Yes |
| Shower Head Shape | Round |
| Slide Bar Included | No |
| Spray Patterns | Outer rain, central rain, and outer rain+central rain |
| Thermostatic | No |
| Valve Included | Yes |
| Valve Type | Ceramic |
| Water Efficient | No |
| Watersense | No |
