SMFWL7248 72-in X 48-in Curbless Wet Room Shower Base With Linear Drain, Blue
- In Stock
- Brand: Samuel Mueller
- Model # SMFWL7248

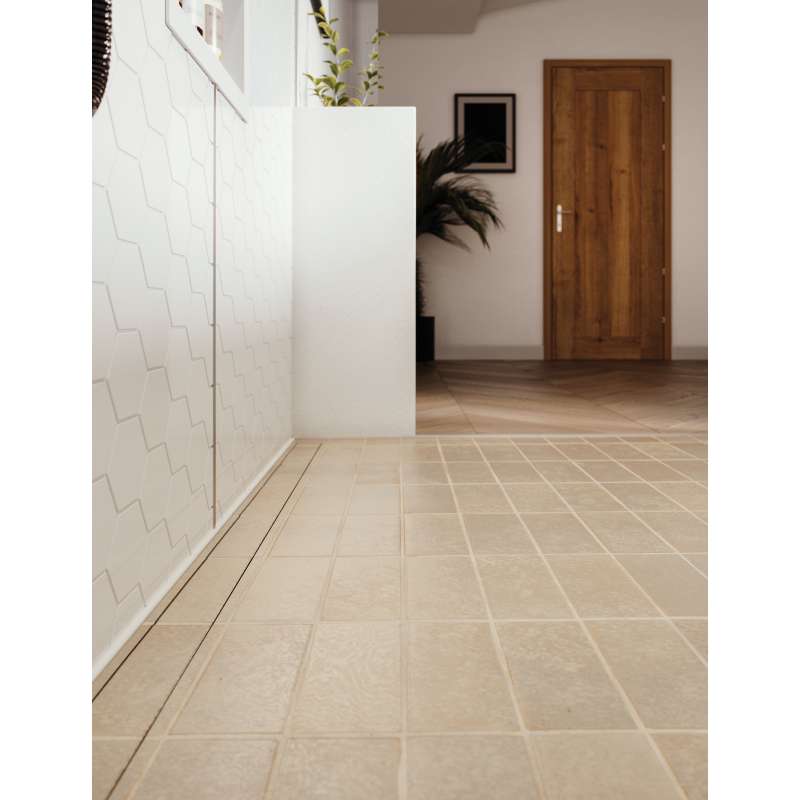

Wet Room curbless shower bases are made for tile to go over them. The result is a seamless integration with the tile floor so that the shower base becomes a seemless part of the surroundings.
- Zero threshold, curbless shower base

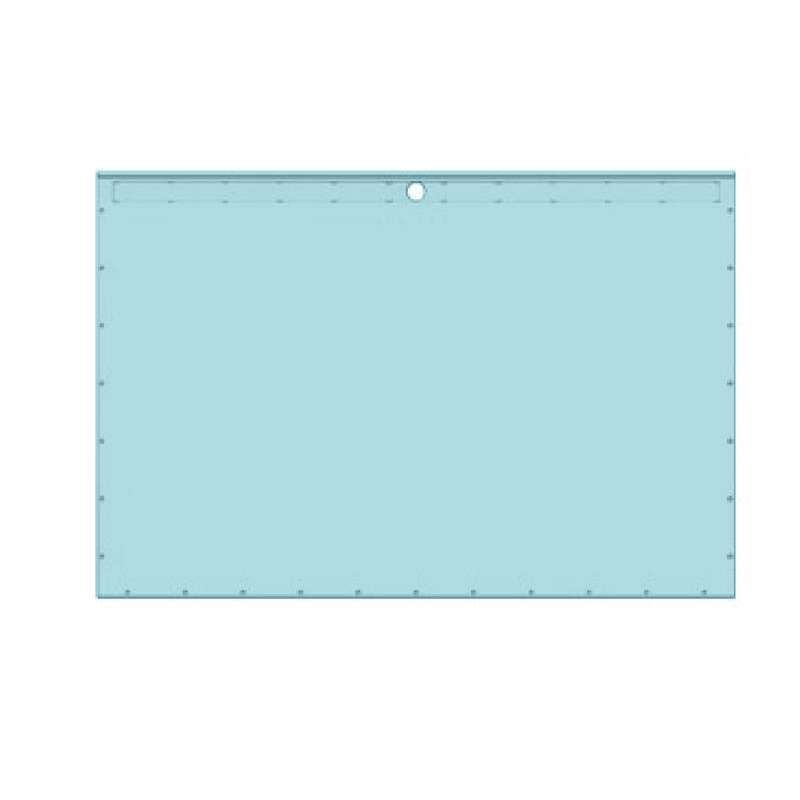

- 72-in L x 48-in W
- Compression molded glass-fiber reinforced plastic (GRP)
- Weight capacity of 840 lbs when installed on 16-in o.c. joist systems supplemented with perimeter and drain hole blocking
- Single continuous pitch to direct water flow towards the drain
- Base rests directly on the joist system, wood, subfloor, or concrete
- Can install multiple adjacent bases to create a larger showering area
- Waffle design on the underside of the base increases strength
- Suitable for use with underfloor heating
- Can be finished with tile or stone

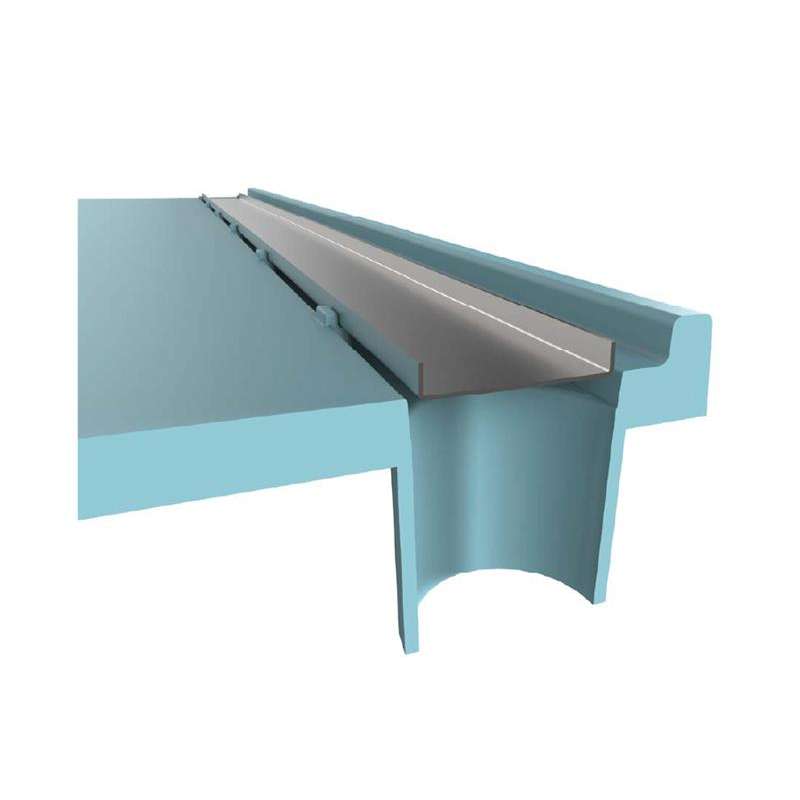

- Tileable stainless steel linear drain cover included and runs the width of the base
- Standard 2” PVC drain connector included
- 2-in drain hole diameter; drain not included
- Complete installation with a Samuel Mueller waterproofing kit (sold separately)
- 10 Year Limited Residential Warranty / 3 Year Commercial Warranty
| Guides & Documents | Spec Sheet Installation PDF |
| Brand | Samuel Mueller |
| Front To Back Dimension (in) | 45 to 50 |
| Left To Right Dimension (in) | 70 or Greater |
| Product Type | Shower Base |
| Collection | Wet Room |
| Color | Blue |
| Width (in) | 48 |
| Length (in) | 72 |
| Height (in) | 2.0625 |
| Material | GRP (Compression Molded Glass-Fiber Reinforced Plastic) |
| Shape | Rectangular |
| Color/Finish Family | Blues |
| Weight (lb) | 106 |
| Warranty | 10 Year Limited Residential / 3 Year Limited Commercial |
| Ada Compliant | No |
| Drain Assembly Included | No |
| Drain Location | Front Center |
| Drain Size (in) | 2 |
| Integrated Seat | No |
| Residential/Commercial | Residential and Commercial |
| Weight Capacity (lb) | 840 |
