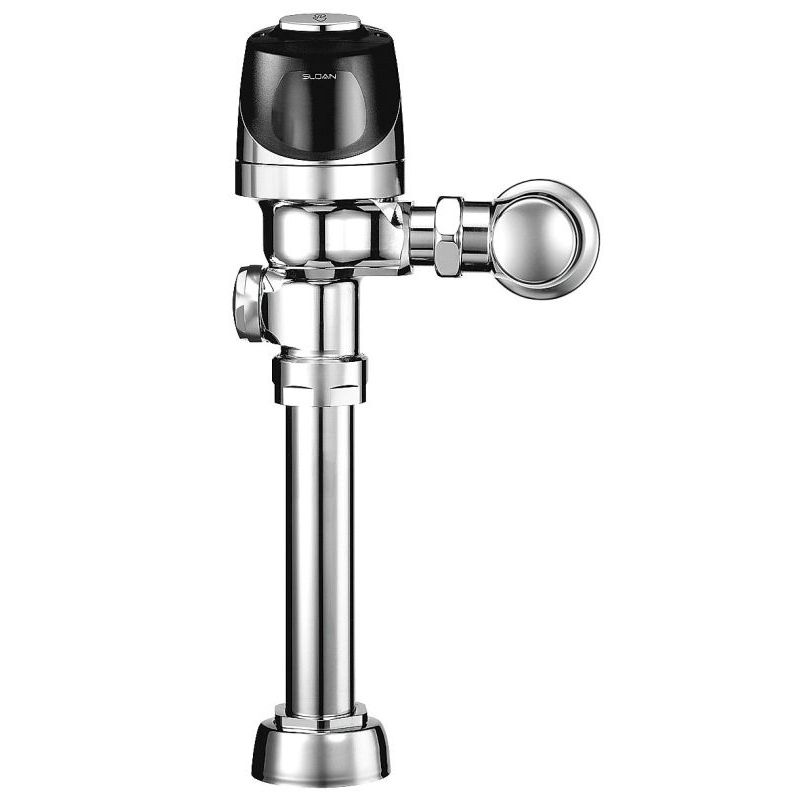

Automatic Flush Valve, Toilet Fixture Type, 24VAC, 50/60 Hz, 1-in Inlet Size
- In Production
- Brand: Sloan
- Model # Royal 111-1.28 ES-S
Sloan is the world's leading manufacturer of commercial plumbing systems and has been in operation since 1906. Headquartered in Franklin Park, Illinois, the company is at the forefront of the green building movement and provides sustainable restroom solutions by manufacturing water and energy-efficient products such as flushometers, electronic faucets, sink systems, soap dispensing systems and vitreous china fixtures for commercial, industrial and institutional markets worldwide.
| Guides & Documents | Spec Sheet |
| Brand | Sloan |
| Standards Met | Valve Body, Cover, Tailpiece and Control Stop Shall Be In Conformance with ASTM Alloy Classification for Semi-Red Brass. Valve Shall Be In Compliance with The Applicable Sections of ASSE 1037 and ANSI/ASME A112.19.2. Installation Conforms to ADA Requirements. UL, IAPMO |
| Color | Chrome |
| Color/Finish Family | Chromes |
| Warranty | 3 Year |
| Stock Status | Currently Out of Stock |
| Battery Life | 5 Years @ 4000 Flushes/Month |
| Component(s) Included | Valve Body, Tailpiece, Control Stop |
| Connection Location | Top |
| Flush Rate (GPF) | 1.28 |
| Inlet Diameter (in) | 1 |
| Power Source | 24VAC, 50/60 Hz |
| Pressure Range (PSI) | 15 to 100 |
| Sensor Range (in) | 22 to 42 |
| Spud Coupling | 1-1/2-in |
| Valve Design | Diaphragm |
