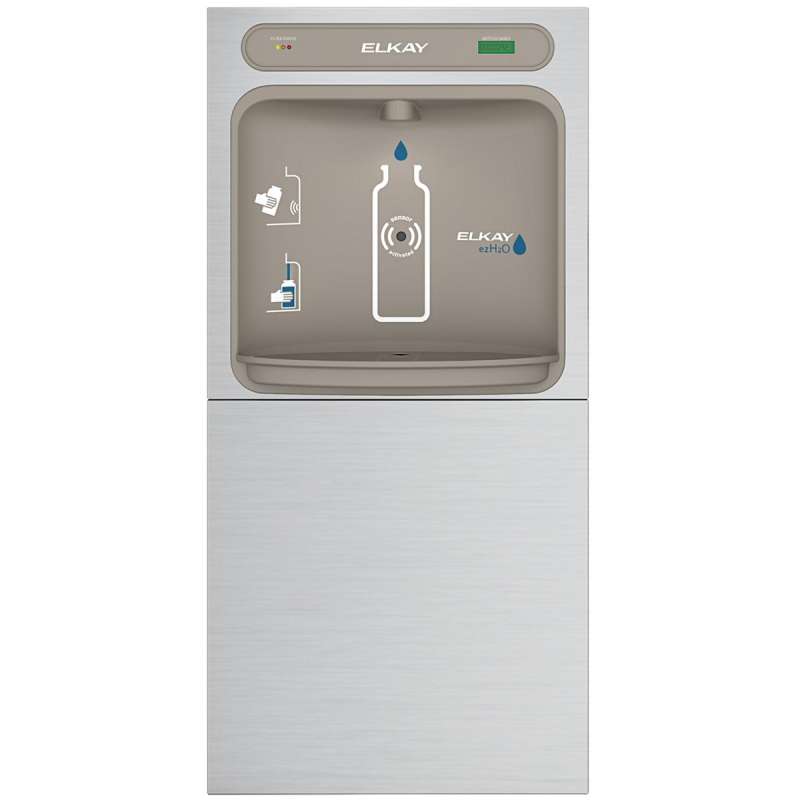

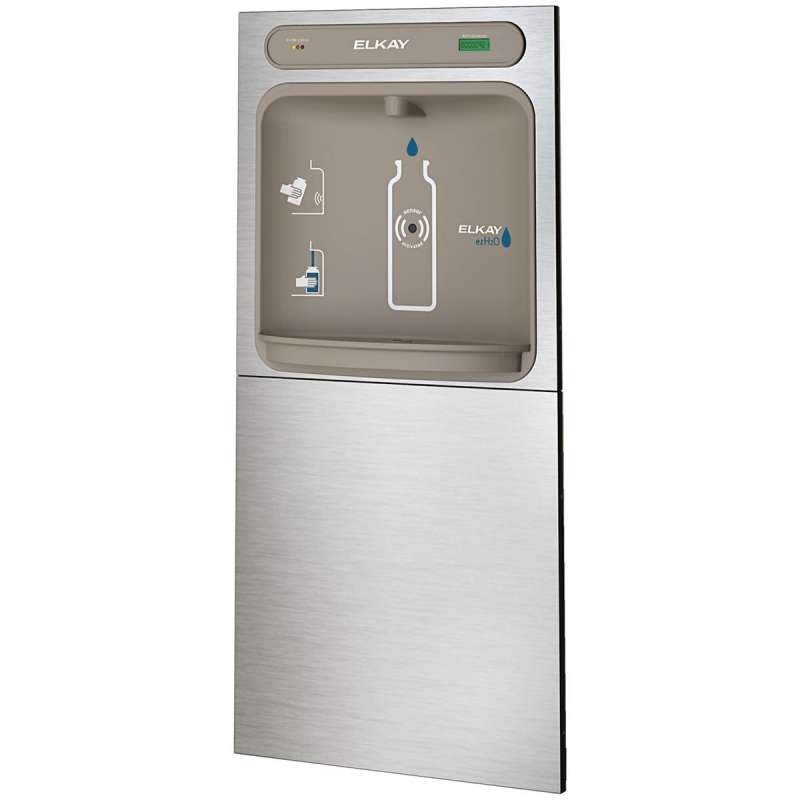

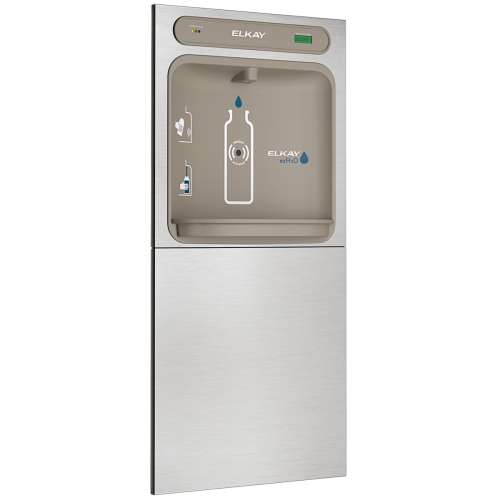

The Elkay EZH2O Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Fully recessed in-wall design. Sanitary no-touch sensor activation with automatic 20-second shut-off timer.
- Designed as a stand-alone unit or to be paired with Elkay SwirlFlo or Soft Sides(R) architectural fountains
- Touchless, sensor activation (bottle filler) designed for easy use
- Fill rate is 1.5 GPM
- Visual filter monitor with LED filter status indicator for when filter change is necessary

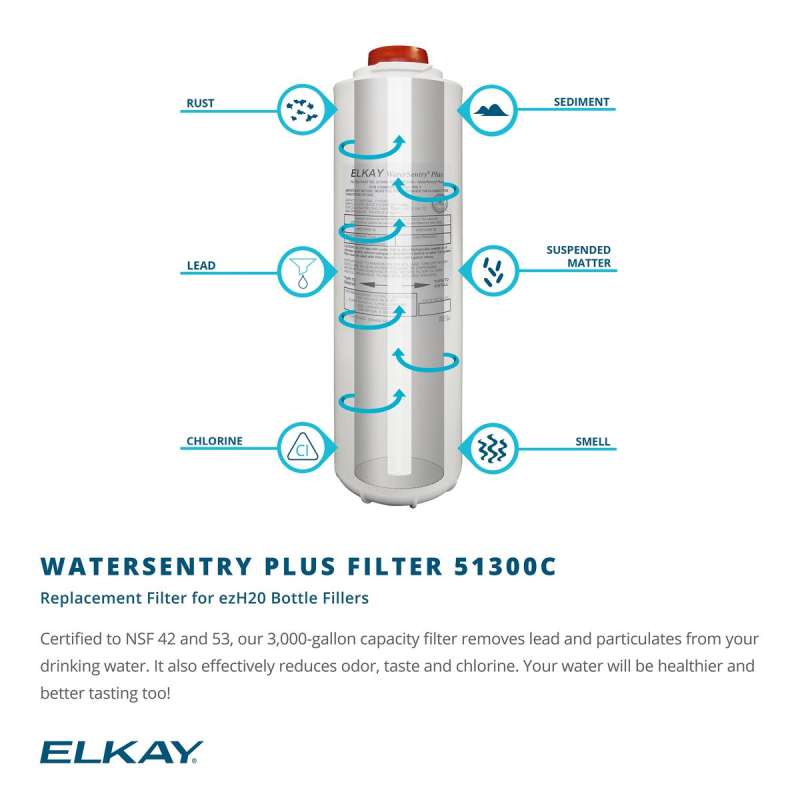

- The 3,000-gallon filter is certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odor reduction
- Green Ticker informs user of number of 20 oz. plastic water bottles saved from waste
- Key plastic components are manufactured with silver ion antimicrobial agent helping to provide clean, stain- and odor-free surfaces
- Silver ion antimicrobial protection on key plastic components to inhibit the growth of mold and mildew
- Real drain system eliminates standing water
- Touchless, sensor-activated bottle filler designed for easy use
| Activation Type | Electronic Bottle Filler Sensor |
| Brand | Elkay |
| Chilling Option | Non-refrigerated |
| CSA Standards | CSA C22.2 No. 120 |
| Installation Location | Indoor |
| Mount Type Drinking Water | Wall Mount (In-Wall Frame/Plate) |
| NSF Standard 372 | Yes |
| NSF Standard 61 | Yes |
| Prop 65 Warning | Yes |
| Specifications | Spec Sheet Installation Warranty |
| Product Type | Bottle Filling Station |
| Collection | Elkay®,ezH2O® |
| Color | Stainless Steel |
| Width (in) | 3.5 |
| Length (in) | 19.75 |
| Height (in) | 40.8125 |
| Material | Stainless Steel |
| Weight (lb) | 11 |
| Ada Compliant | Yes |
| Application | Healthcare Facilities;Government/Municipal;High End Architectural;Hospitality;Indoor Gym/Fitness;Large Office Building;Public Facilities;Schools And Universities;Small Office Building |
| Bubbler Style | No Bubbler |
| Lead Law Compliant | Yes |
| Number of Stations | 1 |
| Power Source | Hardwired |
| Voltage | 115 |
| Wattage | 15 |
