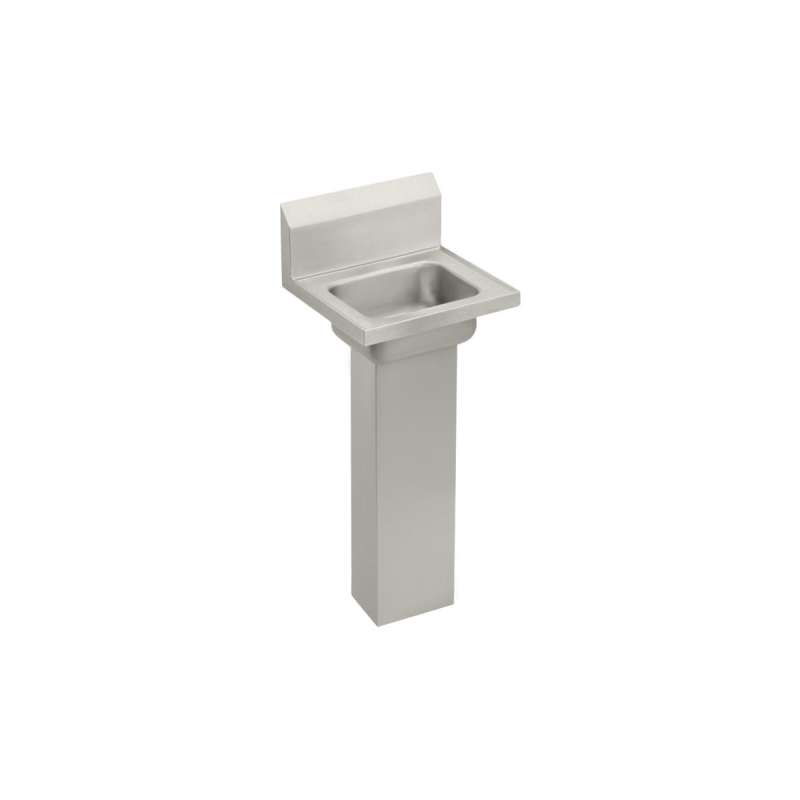

Stainless Steel 16-3/4" X 15-1/2" X 13" Single Bowl Wall Hung Handwash Sink, CHSP17160
- In Stock
- Brand: Elkay
- Model # CHSP17160
Elkay has been a trusted name in stainless steel since 1920. We are proud to be America's No. 1 selling kitchen sink company. In addition, we offer prep, bar, bath and laundry sinks. Elkay commercial sinks can be found in public spaces such as classrooms, office buildings, health care facilities, parks and recreation areas and more. Available in ADA depths.
- Type 304 stainless steel basin
- 1-3/4" radius coved corners
- 7" high, full-length backsplash with 45-degree angle sloped top
- Exposed surfaces have a brushed finish
- Easy to clean and sanitize
- 2" drain opening
- 36" floor to rim
- Stainless steel pedestal
| ASME Standards | ASME A112.19.3 |
| Backsplash Height | 8 |
| Bowl Split | Single Bowl |
| Brand | Elkay |
| CSA Standards | CSA B45.4 |
| Drain Placement Bowl 1 | Center Center |
| Drain Size Bowl 1 | 2 |
| Drainboard Type | No drainboard |
| Length Bowl 1 | 13.625 |
| NPCC | Yes |
| Prop 65 Warning | Yes |
| Shape Bowl 1 | Rectangular |
| Sink Depth | 13 |
| Specifications | Spec Sheet Warranty |
| Width Bowl 1 | 9.75 |
| Product Type | Cis |
| Collection | Elkay® |
| Color | Buffed Satin |
| Width (in) | 15.5 |
| Length (in) | 17 |
| Height (in) | 11.875 |
| Material | Stainless Steel |
| Weight (lb) | 15 |
| Ada Compliant | No |
| Application | Scrub + Handwash |
| Gauge | 20 |
| Installation | Scullery |
| Number of Bowls | 1 |
| UPC Listed | cUPC |
