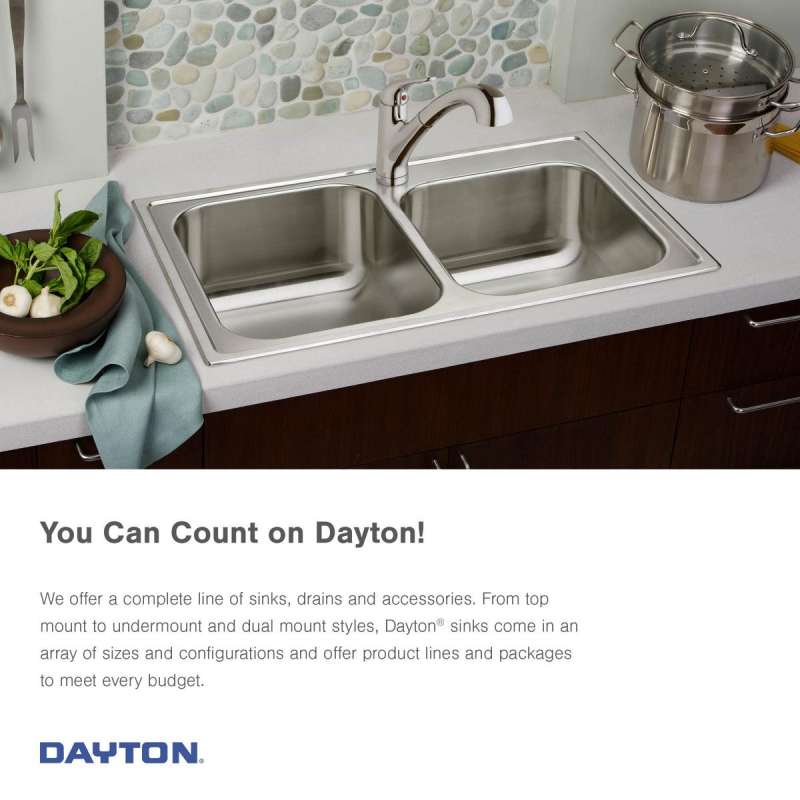

Dayton offers a complete line of stainless steel sinks, along with drains and accessories. From drop-in installation to undermount and dual mount styles, Dayton sinks come in an array of sizes and bowl configurations. You'll also find packages to meet every budget. Our products are backed with the quality assurance of domestic manufacturing and great customer service.

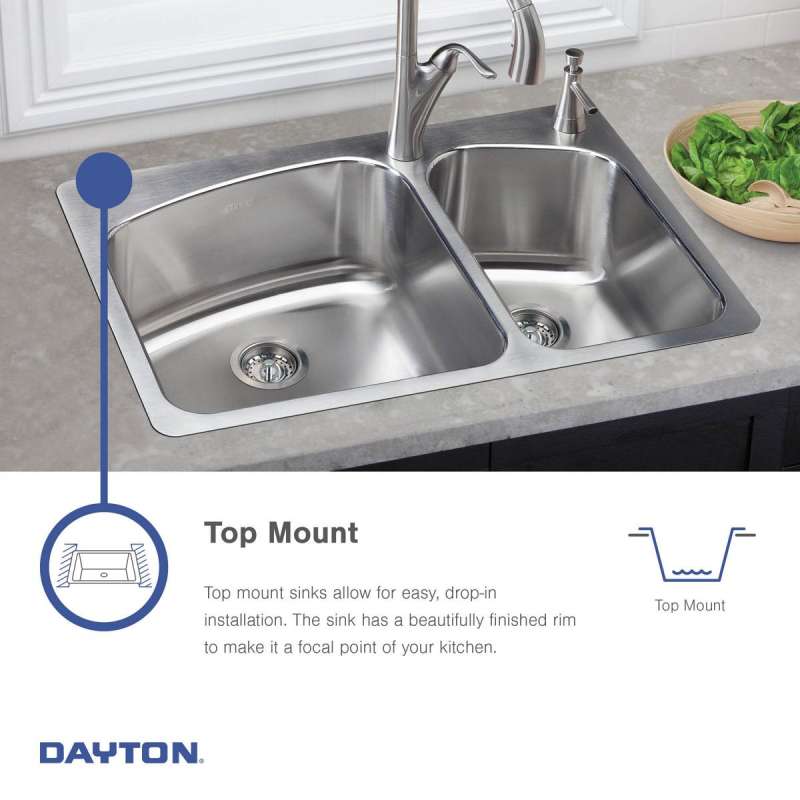

- DROP-IN INSTALLATION: Sink is installed above the countertop, an ideal choice if you are not replacing the counter; has a beautifully finished rim
- 18-GAUGE STAINLESS STEEL: Crafted from high-quality 18-gauge thickness and 300 Series stainless steel for lasting durability

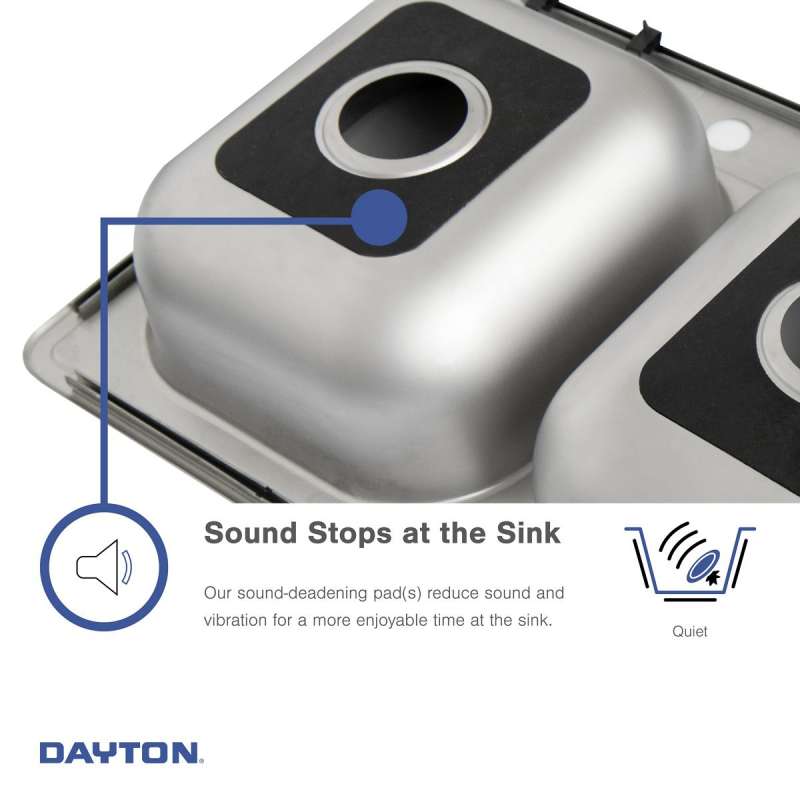

- QUIET: Sound-deadening pad(s) minimizes sound and vibration for a quieter time at the sink

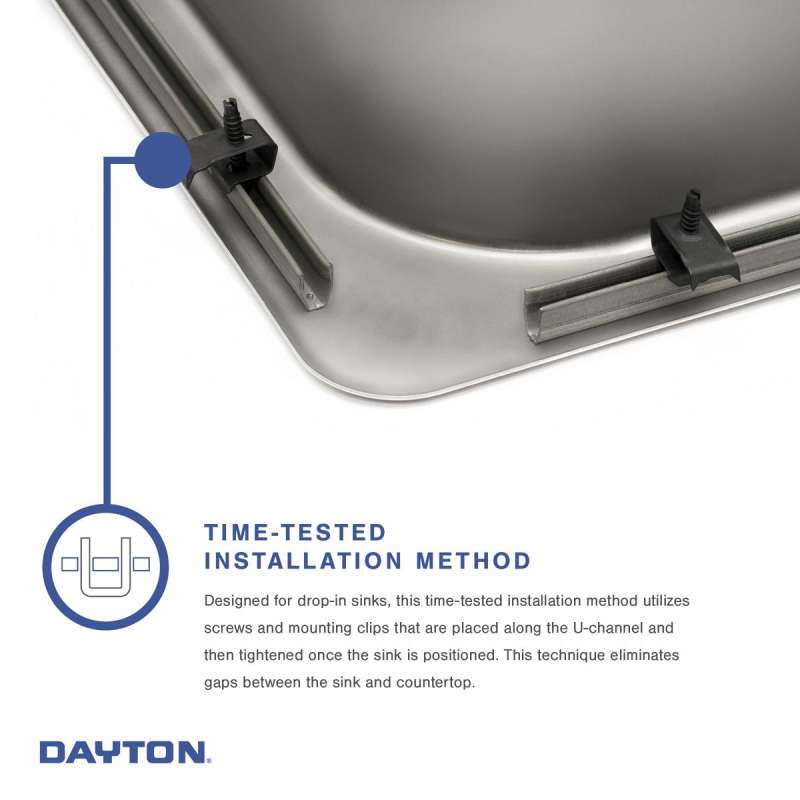

- U-CHANNEL INSTALLATION: Mounting clips placed inside the channel before installation means less time under the sink for an easier install
- CENTER DRAIN: Drain is conveniently placed in the center of the sink
- LARGE CAPACITY: Straight sidewalls give the sink a flat bottom and offer more usable space for stacking, soaking and washing dishes; easy to clean
- MADE IN THE USA: This Elkay product is proudly made in the USA
- DRAIN OPENING: Sink drain opening measures 3-1/2"
- CABINET SIZE: Minimum cabinet size for this sink is 36"
| Bowl Split | 60/40 |
| Brand | Elkay |
| Countertop Cutout Dimensions | 32-3/8" x 21-3/8" (822mm x 543mm) with 1-1/2" (38mm) corner radius |
| Drain Placement Bowl 1 | Center Center |
| Drain Placement Bowl 2 | Center Center |
| Drain Size Bowl 1 | 3.5 |
| Drain Size Bowl 2 | 3.5 |
| Drainboard Type | No drainboard |
| Length Bowl 1 | 13.5 |
| Length Bowl 2 | 14 |
| Minimum Cabinet Size Inches | 36 |
| NPCC | Yes |
| Number Faucet Holes Required | 2 |
| Prop 65 Warning | Yes |
| Shape Bowl 1 | Rectangular |
| Shape Bowl 2 | Rectangular |
| Sink Depth | 8.1875 |
| Sound Deadening | Sides and Bottom pads |
| Specifications | Spec Sheet Installation Warranty |
| Width Bowl 1 | 18 |
| Width Bowl 2 | 16 |
| Product Type | Sink |
| Collection | Dayton® |
| Color | Satin |
| Width (in) | 22 |
| Length (in) | 33 |
| Height (in) | 8.1875 |
| Material | Stainless Steel |
| Weight (lb) | 23.75 |
| Ada Compliant | No |
| Application | Residential/MultiFamily |
| Gauge | 18 |
| Installation | Drop-in |
| Number of Bowls | 2 |
| UPC Listed | cUPC |
