Dayton offers a complete line of stainless steel sinks, along with drains and accessories. From drop-in installation to undermount and dual mount styles, Dayton sinks come in an array of sizes and bowl configurations. You'll also find packages to meet every budget. Our products are backed with the quality assurance of domestic manufacturing and great customer service.
- Slim Rim: Install sink as a drop-in or undermount; ultrathin, flat rim virtually eliminates the barrier between sink and counter for a clean look

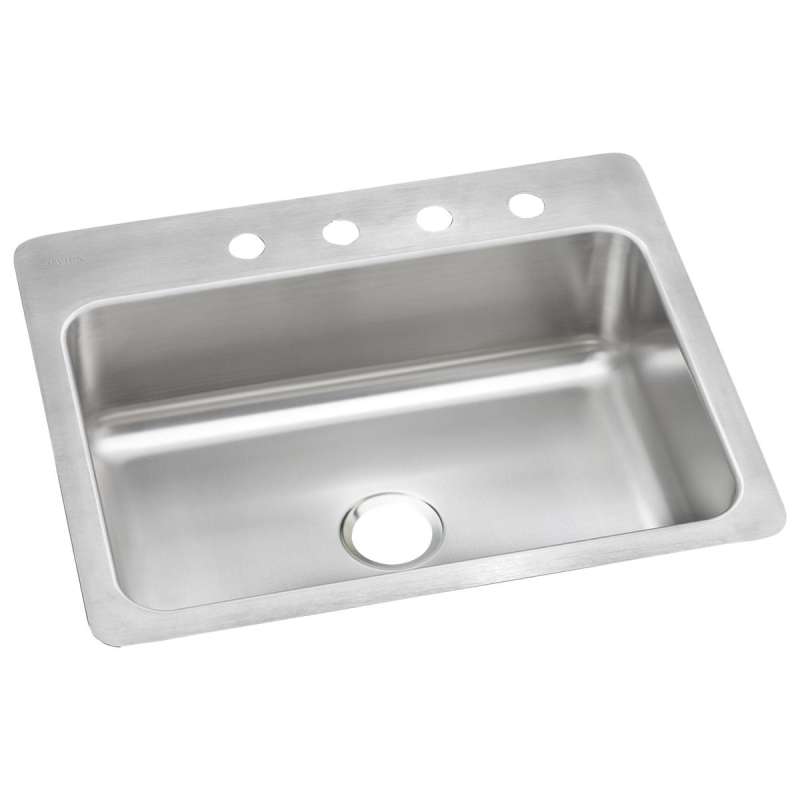

- SINGLE BOWL: Bowl gives you uninterrupted space for washing and stacking dishes or other household tasks
- 18-GAUGE STAINLESS STEEL: Crafted from high-quality 18-gauge thickness and 300 Series stainless steel for lasting durability
- QUIET: Sound-deadening pad(s) minimizes sound and vibration for a quieter time at the sink
- U-CHANNEL INSTALLATION: Mounting clips placed inside the channel before installation means less time under the sink for an easier install
- LARGE CAPACITY: Straight sidewalls give the sink a flat bottom and offer more usable space for stacking, soaking and washing dishes; easy to clean
- MADE IN THE USA: This Elkay product is proudly made in the USA
- DRAIN OPENING: Sink drain opening measures 3-1/2"
- CABINET SIZE: Minimum cabinet size for this sink is 30"
| ASME Standards | ASME A112.19.3 |
| Brand | Elkay |
| Countertop Cutout Dimensions | 26-3/8" x 21-3/8" (670mm x 543mm) with 1-1/2" (38mm) corner radius |
| CSA Standards | CSA B45.4 |
| Drain Placement Bowl 1 | Center Center |
| Drain Size Bowl 1 | 3.5 |
| Gallons To Overflow | 12.6 |
| Length Bowl 1 | 24 |
| Minimum Cabinet Size Inches | 30 |
| NPCC | Yes |
| Number Faucet Holes Required | 4 |
| Prop 65 Warning | Yes |
| Shape Bowl 1 | Rectangular |
| Sink Depth | 8 |
| Sound Deadening | Bottom only pads |
| Specifications | Spec Sheet Installation Warranty |
| Width Bowl 1 | 16 |
| Product Type | Sink |
| Collection | Dayton® |
| Color | Elite Satin |
| Width (in) | 22 |
| Length (in) | 27 |
| Height (in) | 8 |
| Material | Stainless Steel |
| Weight (lb) | 17 |
| Ada Compliant | No |
| Application | Residential/MultiFamily |
| Gauge | 18 |
| Installation | Drop-in;Undermount |
| Number of Bowls | 1 |
| UPC Listed | cUPC |
