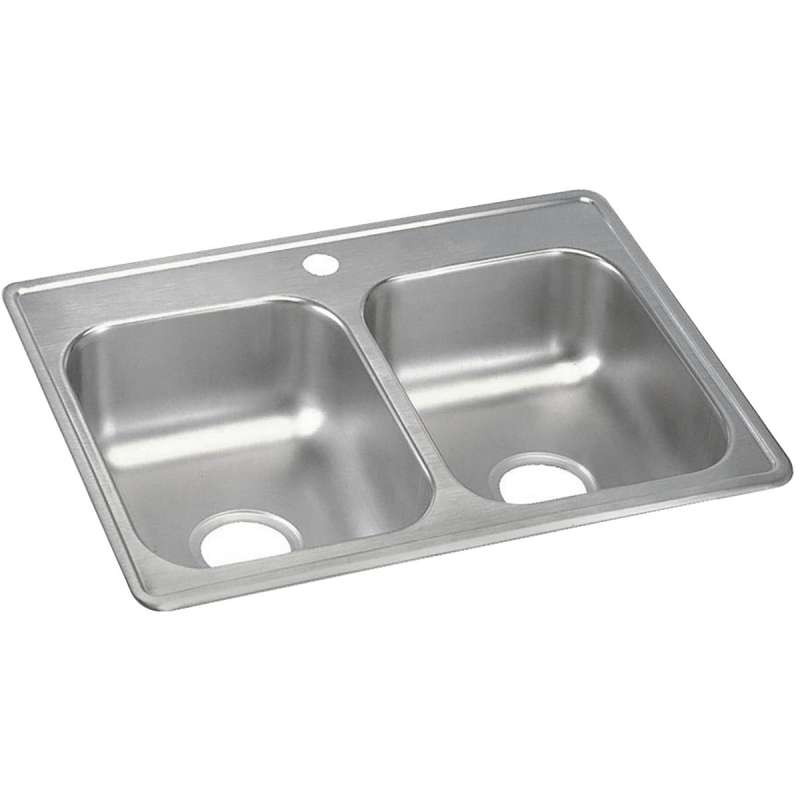

Dayton Stainless Steel 25" X 19" X 6-5/16" 1-Hole Equal Double Bowl Drop-In Sink, D225191
- In Stock
- Brand: Elkay
- Model # D225191

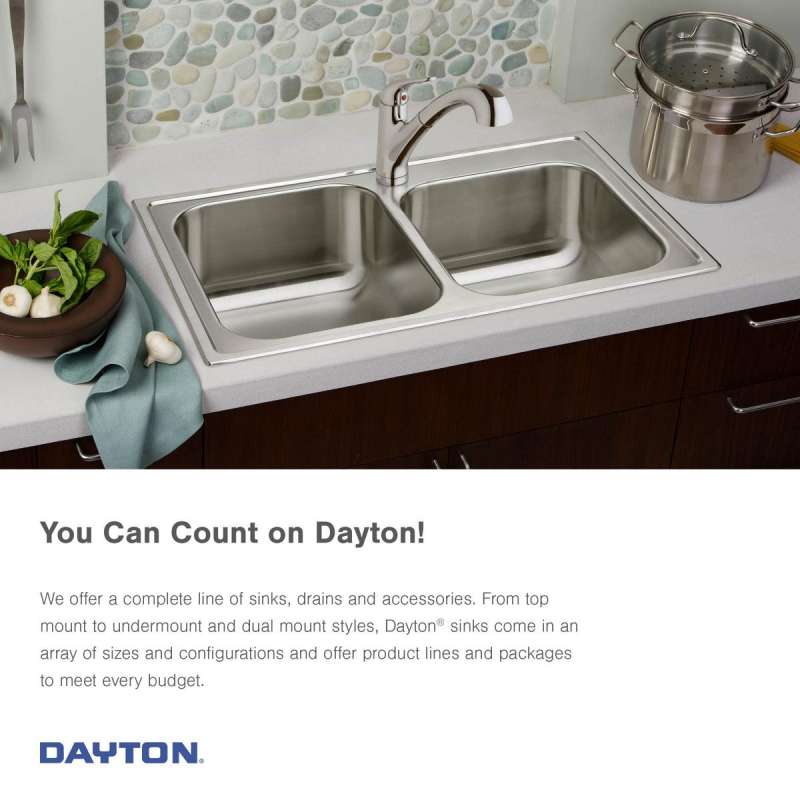

Dayton offers a complete line of stainless steel sinks, along with drains and accessories. From drop-in installation to undermount and dual mount styles, Dayton sinks come in an array of sizes and bowl configurations. You'll also find packages to meet every budget. Our products are backed with the quality assurance of domestic manufacturing and great customer service.
- ADA COMPLIANT: Product is ADA compliant when properly installed

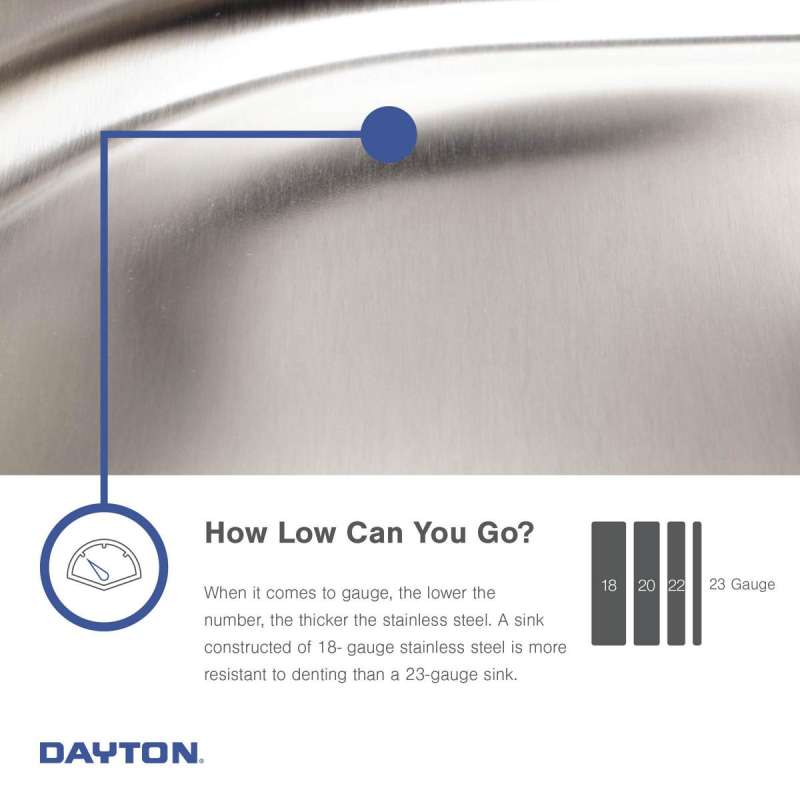

- 22-GAUGE STAINLESS STEEL: Commercial grade 22-gauge thickness and 300 Series stainless steel for everyday use

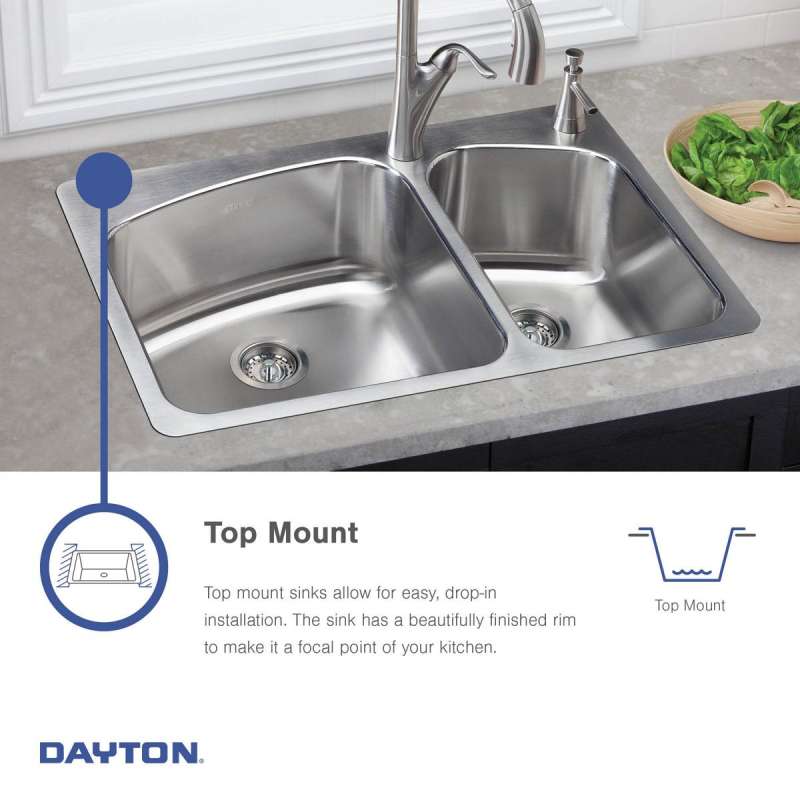

- DROP-IN INSTALLATION: Sink is installed above the countertop, an ideal choice if you are not replacing the counter; has a beautifully finished rim
- 300 SERIES STAINLESS STEEL: Sturdy design is crafted to meet the demands of everyday use

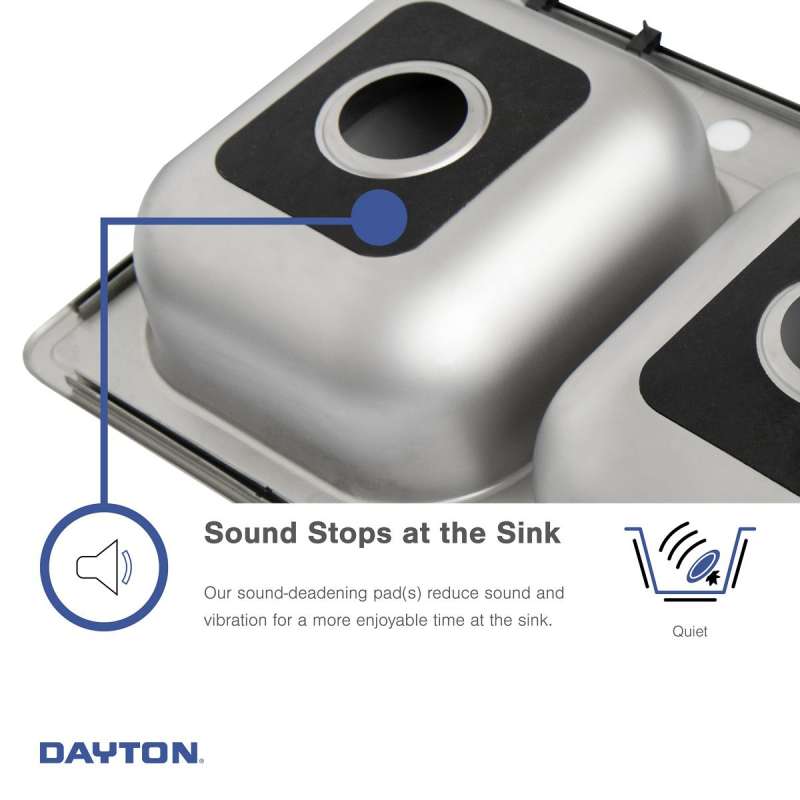

- QUIET: Sound-deadening pad(s) minimizes sound and vibration for a quieter time at the sink

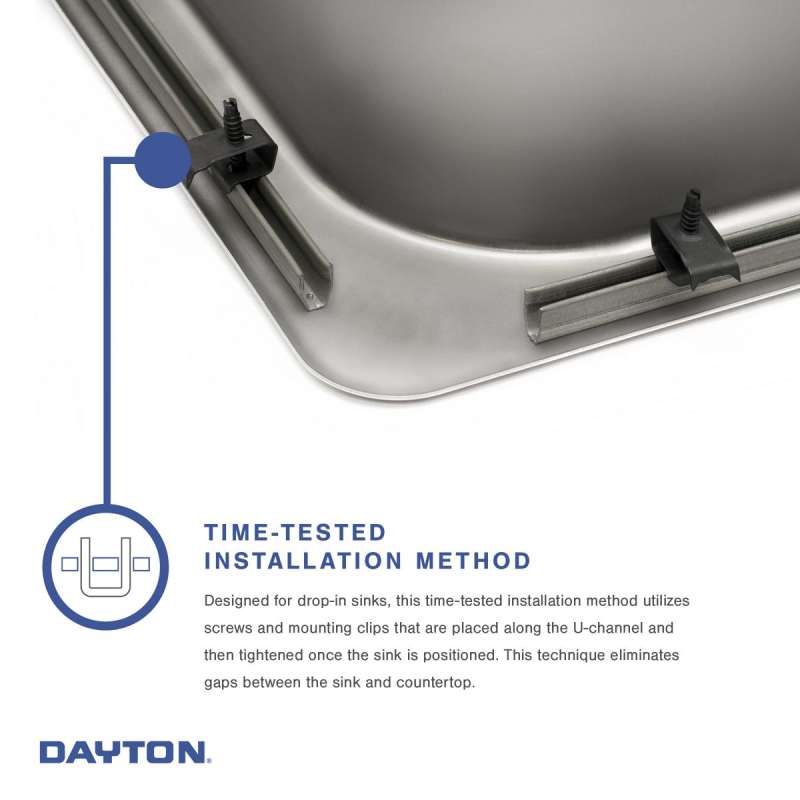

- U-CHANNEL INSTALLATION: Mounting clips placed inside the channel before installation means less time under the sink for an easier install
- MADE IN THE USA: This Elkay product is proudly made in the USA
- DRAIN OPENING: Sink drain opening measures 3-1/2"
| ASME Standards | ASME A112.19.3 |
| Bowl Split | 50/50 |
| Brand | Elkay |
| Countertop Cutout Dimensions | 24-3/8" x 18-3/8" (619mm x 467mm) with 1-1/2" (38mm) corner radius |
| CSA Standards | CSA B45.4 |
| Drain Placement Bowl 1 | Center Center |
| Drain Placement Bowl 2 | Center Center |
| Drain Size Bowl 1 | 3.5 |
| Drain Size Bowl 2 | 3.5 |
| Drainboard Type | No drainboard |
| Gallons To Overflow | 11.4 |
| Length Bowl 1 | 10 |
| Length Bowl 2 | 10 |
| Minimum Cabinet Size Inches | 30 |
| NPCC | Yes |
| Number Faucet Holes Required | 1 |
| Prop 65 Warning | Yes |
| Shape Bowl 1 | Rectangular |
| Shape Bowl 2 | Rectangular |
| Sink Depth | 6.3125 |
| Sound Deadening | Bottom only pads |
| Specifications | Spec Sheet Installation Warranty |
| Width Bowl 1 | 14 |
| Width Bowl 2 | 14 |
| Product Type | Sink |
| Collection | Dayton® |
| Color | Satin |
| Width (in) | 19 |
| Length (in) | 25 |
| Height (in) | 6.3125 |
| Material | Stainless Steel |
| Weight (lb) | 7.5 |
| Ada Compliant | Yes |
| Application | Residential/MultiFamily |
| Gauge | 22 |
| Installation | Drop-in |
| Number of Bowls | 2 |
| UPC Listed | cUPC |
