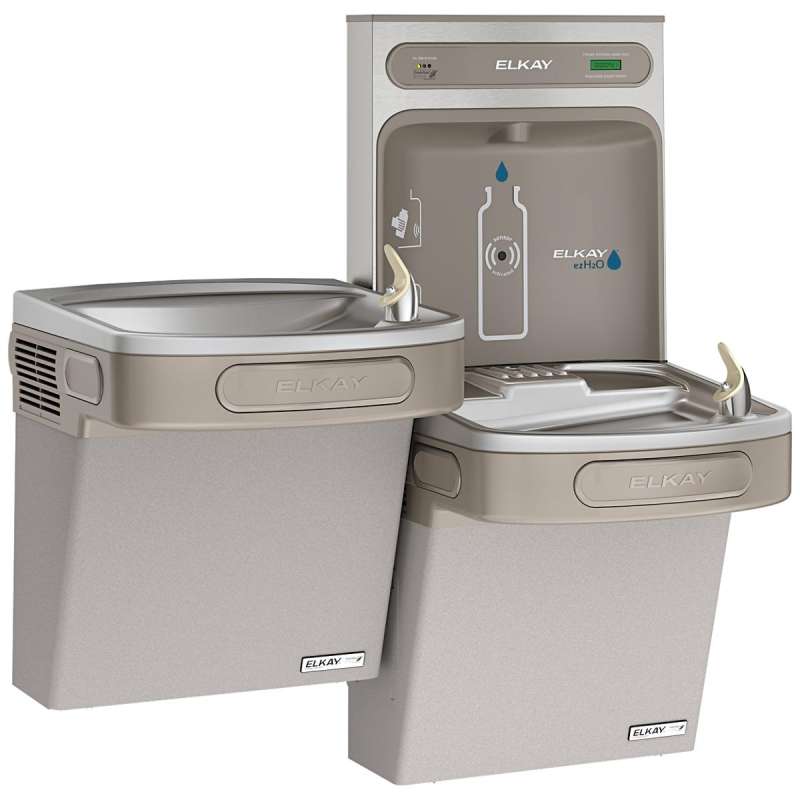

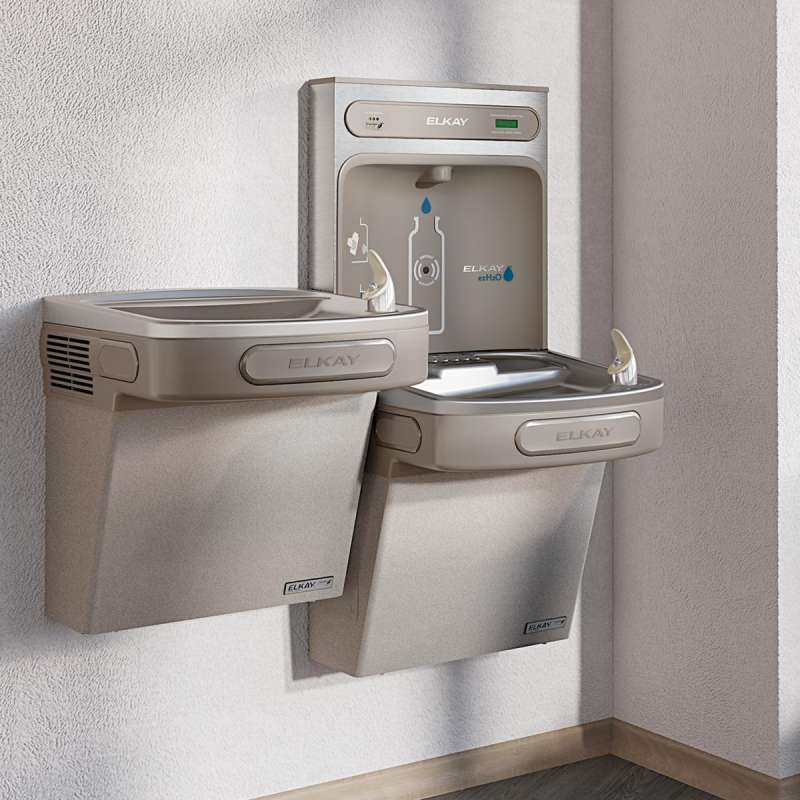

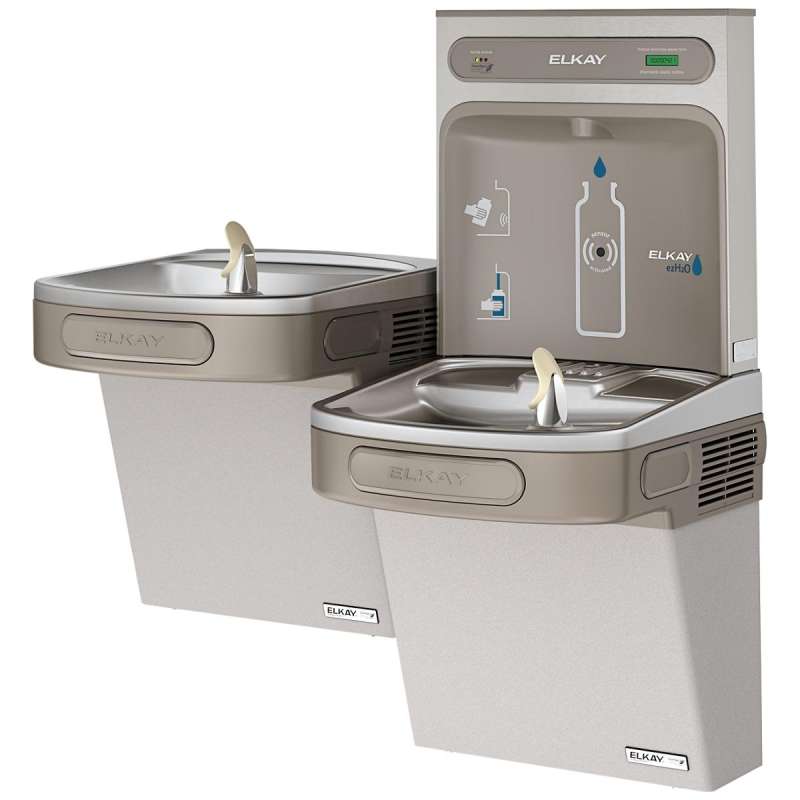

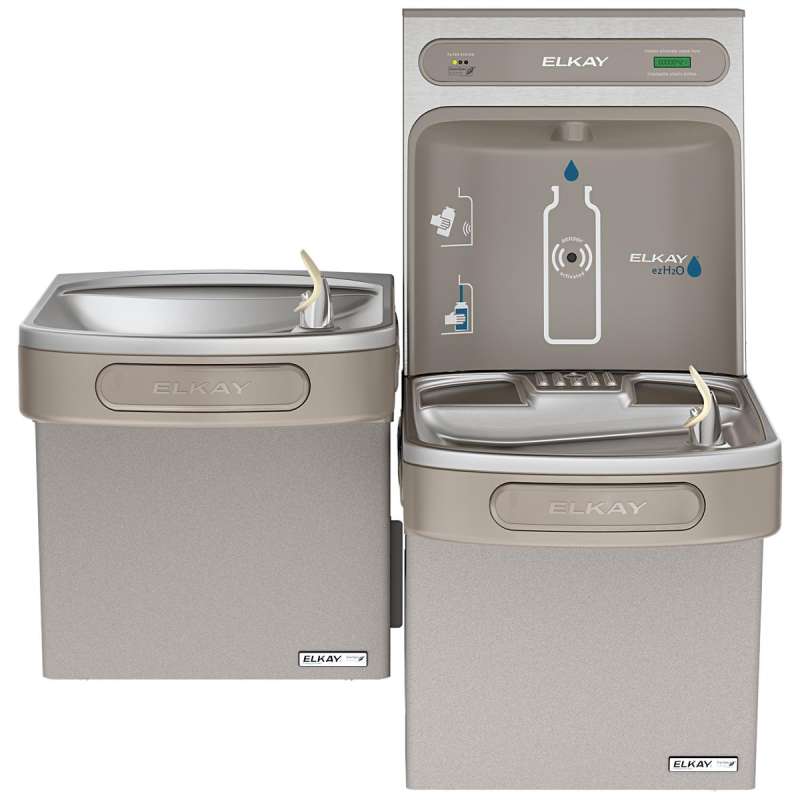

The Elkay EZH2O Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Complete cooler and bottle filling station in a consolidated space saving ADA compliant design. NEW Versatile Bi-Level cooler design allows for standard cooler installation of high-left/low-right or the alternate reverse cooler installation.
- Touchless, sensor activation (bottle filler) designed for easy use; easy-to-operate push-bar activation (bubbler)
- Hermetically sealed refrigeration system provides chilled water to satisfy thirst
- Fill rate is 1.1 GPM. Laminar flow provides clean fill with minimal splash. Real drain system eliminates standing water
- High-performance compressor and insulation reduce energy consumption to demonstrate a commitment to sustainability
- Visual filter monitor with LED filter status indicator for when filter change is necessary

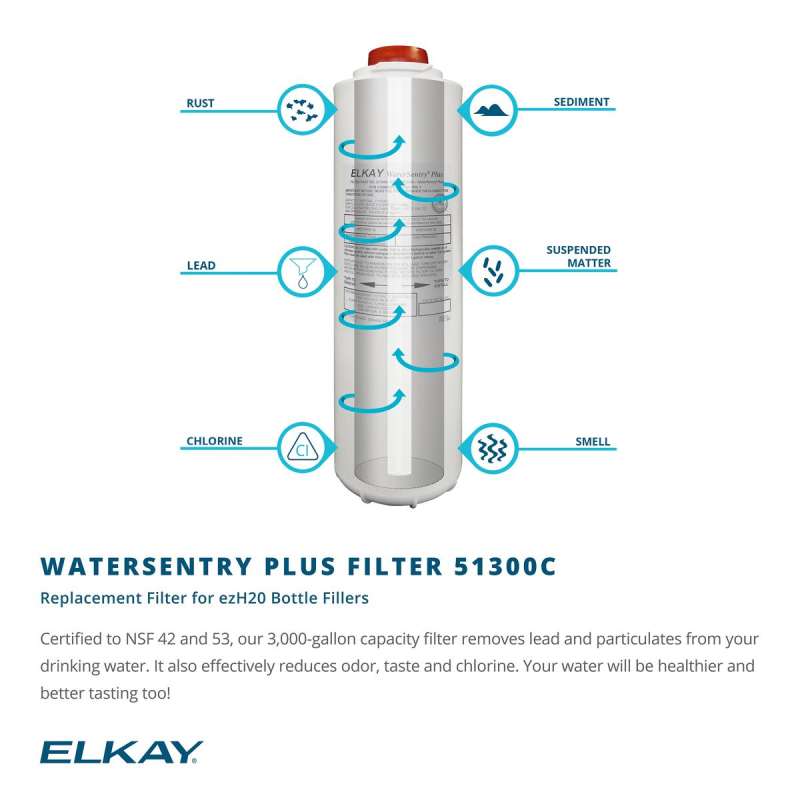

- The 3,000-gallon filter is certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odor reduction
- Key plastic components are manufactured with silver ion antimicrobial agent helping to provide clean, stain- and odor-free surfaces
- Silver ion antimicrobial protection on key plastic components to inhibit the growth of mold and mildew
- Touchless, sensor-activated bottle filler designed for easy use; easy-to-operate push-bar-activated bubbler
- Rated for indoor use
| Activation Type | Electronic Bottle Filler Sensor with Electronic Front and Side Bubbler Pushbar |
| ASME Standards | ASME A112.19.3/CSA B45.4 |
| Brand | Elkay |
| Chilling Option | 8.0 GPH |
| CSA Standards | CSA B45.4;CSA C22.2 No. 120 |
| Installation Location | Indoor |
| Mount Type Drinking Water | Wall Mount (On Wall) |
| NSF Standard 372 | Yes |
| NSF Standard 61 | Yes |
| Prop 65 Warning | Yes |
| Specifications | Spec Sheet Installation Warranty |
| Product Type | Bottle Filling Station |
| Collection | Elkay®,ezH2O® |
| Color | Light Gray Granite |
| Width (in) | 19 |
| Length (in) | 36.75 |
| Height (in) | 39.0625 |
| Weight (lb) | 87 |
| Ada Compliant | Yes |
| Application | Healthcare Facilities;Government/Municipal;Hospitality;Indoor Gym/Fitness;Large Office Building;Public Facilities;Schools And Universities;Small Office Building |
| Bubbler Style | Flexi-Guard ® StreamSaver ™ |
| Installation | Wall mount |
| Lead Law Compliant | Yes |
| Number of Stations | 2 |
| Power Source | Hardwired |
| Voltage | 115 |
| Wattage | 360 |
Tags: 058-6308
