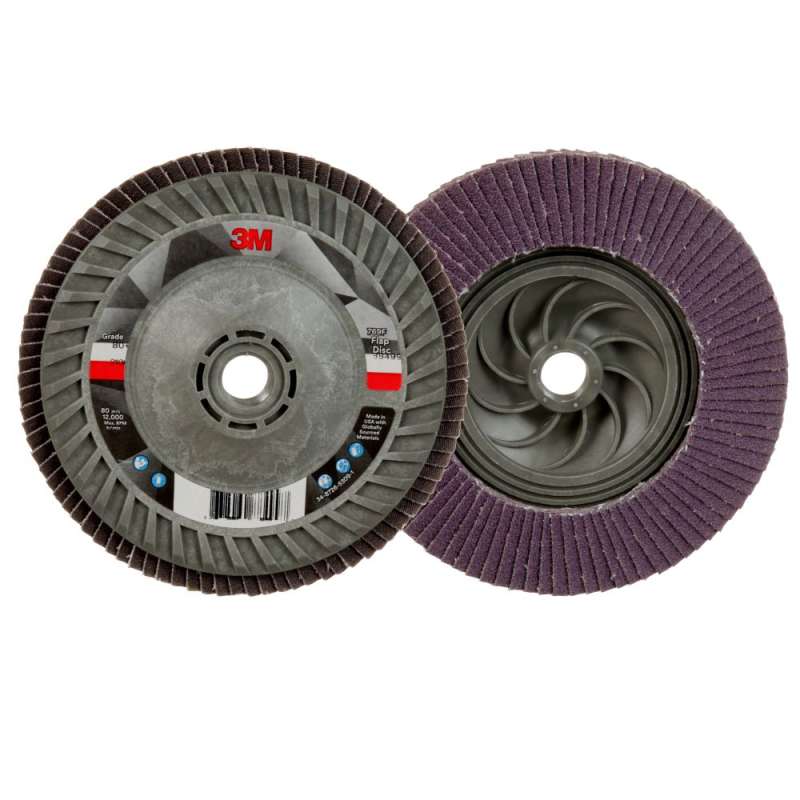

3M™ Flap Disc 769F is a high-performance abrasive disc built for versatility and value. Powered by 3M Precision-Shaped Grain, it lasts longer and cuts faster than conventional aluminum oxide and alumina zirconia flap discs – and it’s priced for affordability and everyday use. This unbeatable combination of performance and value can increase productivity while also lowering your abrasive spend. Value-priced Performance with Built-in Versatility 3M™ Flap Disc 769F is a long-lasting, versatile abrasive disc that includes all the advantages you expect from a flap disc, including conformability and ease of use with a lower risk of gouging. Featuring 3M Precision-Shaped Grain and a durable polyester backing, 3M™ Flap Disc 769F lasts long and holds up strong to high-pressure applications like beveling, weld grinding and edge deburring. Plus, it leaves a finish that makes it a great choice for applications like blending and surface prep. Powered by 3M Precision-Shaped Grain The 3M™ Flap Disc 769F features a blend of 3M Precision-Shaped Grain – a proprietary 3M grain design that continually fractures into sharp points that slice cleanly through metal, unlike traditional abrasives which tend to plow through the substrate. This fracturing helps 3M™ Flap Disc 769F last long and maintain a high cut-rate over the life of the disc. Applications Weld grinding Beveling Edge deburring Blending Finishing Surface preparation Scale removal Weld spatter removal Tech Tip:In many cases, 3M™ Flap Disc 769F will allow you to grind and finish in one step, without changing abrasives. This is because, under normal conditions, 769F will generate a finish that is one grade finer than a fiber disc of the same grade. While a fiber disc will cut faster, this flap disc can eliminate steps and disc change-outs to help save you time.
- LONG LASTING: Delivers long lasting high performance and value
- PRECISION-SHAPED GRAIN: The 3M Precision-Shaped Grain cuts faster and lasts longer than traditional abrasives
- OPTIMAL PERFORMANCE: Unique blend of ceramic Precision-Shaped Grain and aluminum oxide outperforms traditional alumina-zirconia flap discs
- CONSISTENT CUT RATE: Individual flaps break down to expose fresh minerals and deliver a consistent cut rate
- IDEAL FOR CARBON AND STAINLESS STEEL: Use on carbon steel, stainless steel, and other heat sensitive alloys
- VERSATILE: Useful in a range of applications, from weld grinding and beveling to surface prep
| Abrasive Material | Precision Shaped Ceramic |
| Attachment Type | Threaded |
| Backing Material | Polyester |
| Backing Weight | YF Weight |
| Bond Type | Resin |
| Brand | 3M |
| Center Hole Diameter (Imperial) | 0.0 NP |
| Coat Type | Open Coat |
| Disc Type | T29 |
| Equipment - Machines | Right Angle Grinders |
| Grade | Non Pertinent |
| Grit | 80+ |
| Maximum Speed | 12000.0 rpm |
| Overall Diameter (Imperial) | 5.0 in |
| Product Form | Flap Disc |
| Substrate | Carbon Steel |
| Collection | 3M™ |
| Shape | Conical |
| Color/Finish Family | Purple |
| Application | Surface Preparation, Weld Removal, Finishing, Deburring, Blending |
