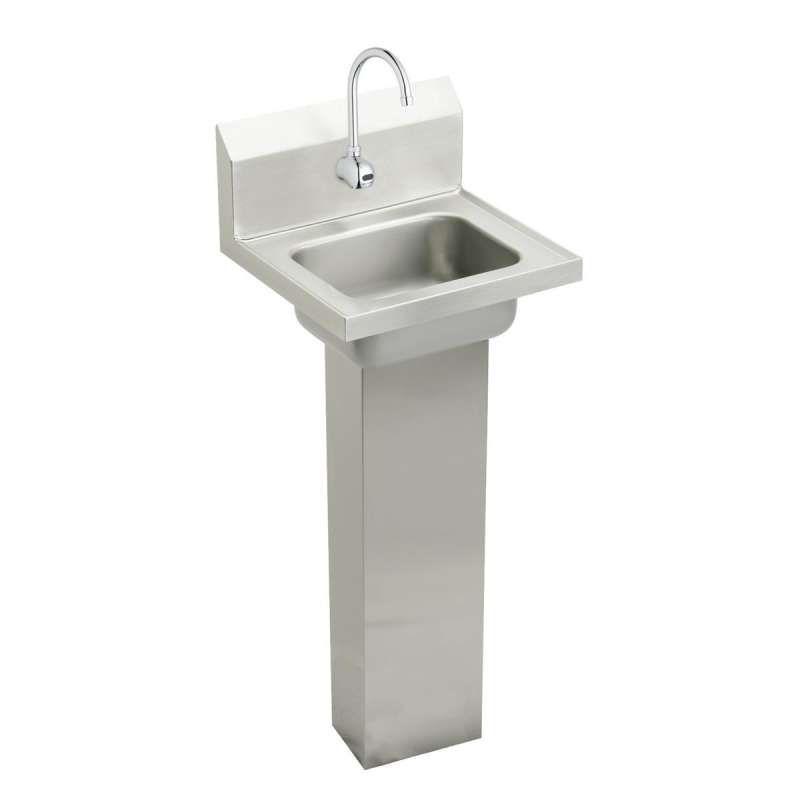

Stainless Steel 16-3/4" X 15-1/2" X 13" Single Bowl Wall Hung Handwash Sink Kit, CHSP1716SACTMC
- In Stock
- Brand: Elkay
- Model # CHSP1716SACTMC
Elkay has been a trusted name in stainless steel since 1920. We are proud to be America's No. 1 selling kitchen sink company. In addition, we offer prep, bar, bath and laundry sinks. Elkay commercial sinks can be found in public spaces such as classrooms, office buildings, health care facilities, parks and recreation areas and more. Available in ADA depths.
- Type 304 stainless steel basin
- 1-3/4" radius coved corners
- 7" high, full-length backsplash with 45-degree angle sloped top
- Exposed surfaces have a brushed finish
- Easy to clean and sanitize
- 2" drain opening
- 36" floor to rim
- Stainless steel pedestal

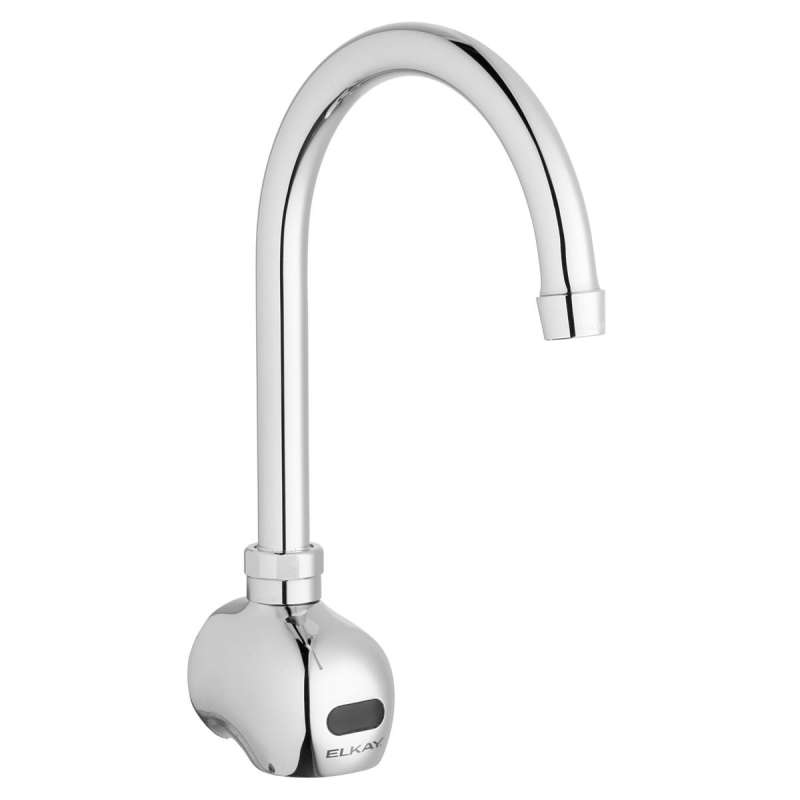

- KIT INCLUDES: CHSP1716 sink, LKB722C AC/battery-powered sensor faucet, LK723 thermostatic mixing valve, LK8 grid drain fitting, and LK500 P-trap
| ASME Standards | ASME A112.19.3; ASME A112.18.1; ASME A112.18.2 |
| Backsplash Height | 7 |
| Brand | Elkay |
| CSA Standards | CSA B45.4; CSA B125.1; CSA B125.2 |
| Drain Placement Bowl 1 | Center Center |
| Drain Size Bowl 1 | 1.5 |
| Drainboard Type | No drainboard |
| Length Bowl 1 | 12 |
| NPCC | Yes |
| NSF Standard 372 | Yes |
| NSF Standard 61 | Yes |
| Number Faucet Holes Required | 1 |
| Prop 65 Warning | Yes |
| Sink Depth | 13 |
| Specifications | Spec Sheet Installation Warranty |
| Width Bowl 1 | 9.25 |
| Product Type | Cis |
| Collection | Elkay® |
| Color | Buffed Satin |
| Width (in) | 15.5 |
| Length (in) | 16.75 |
| Height (in) | 48.875 |
| Material | Stainless Steel |
| Weight (lb) | 32.5 |
| Ada Compliant | No |
| Application | Scrub + Handwash |
| Gauge | 20 |
| Installation | Scullery |
| Lead Law Compliant | Yes |
| Number of Bowls | 1 |
| Power Source | AC plug-in and battery holder with 4 AA batteries pre-installed |
| UPC Listed | cUPC |
| Voltage | 6 |
