Dayton offers a complete line of stainless steel sinks, along with drains and accessories. From drop-in installation to undermount and dual mount styles, Dayton sinks come in an array of sizes and bowl configurations. You'll also find packages to meet every budget. Our products are backed with the quality assurance of domestic manufacturing and great customer service.
- UNDERMOUNT INSTALLATION: Sink is installed beneath the countertop creating a seamless appearance between the sink and the countertop
- DOUBLE BOWLS OF EQUAL SIZE: Conveniently use bowls independently for washing, soaking, rinsing, drying and other household tasks
- 18-GAUGE STAINLESS STEEL: High-quality 18-gauge thickness and 300 Series stainless steel for lasting durability

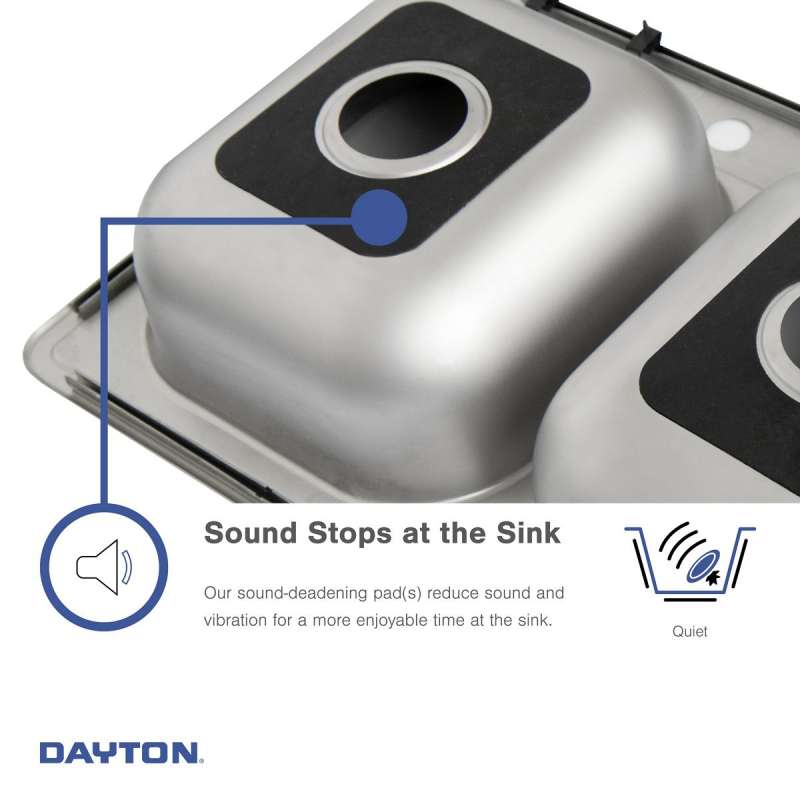

- QUIET: Sound-deadening pad(s) minimizes sound and vibration for a quieter time at the sink
- CENTER DRAIN: Drain is conveniently placed in the center of the sink
- LARGE CAPACITY: Straight sidewalls give the sink a flat bottom and offer more usable space for stacking, soaking and washing dishes; easy to clean
- DRAIN OPENING: Sink drain opening measures 3-1/2"
- CABINET SIZE: Minimum cabinet size for this sink is 36"

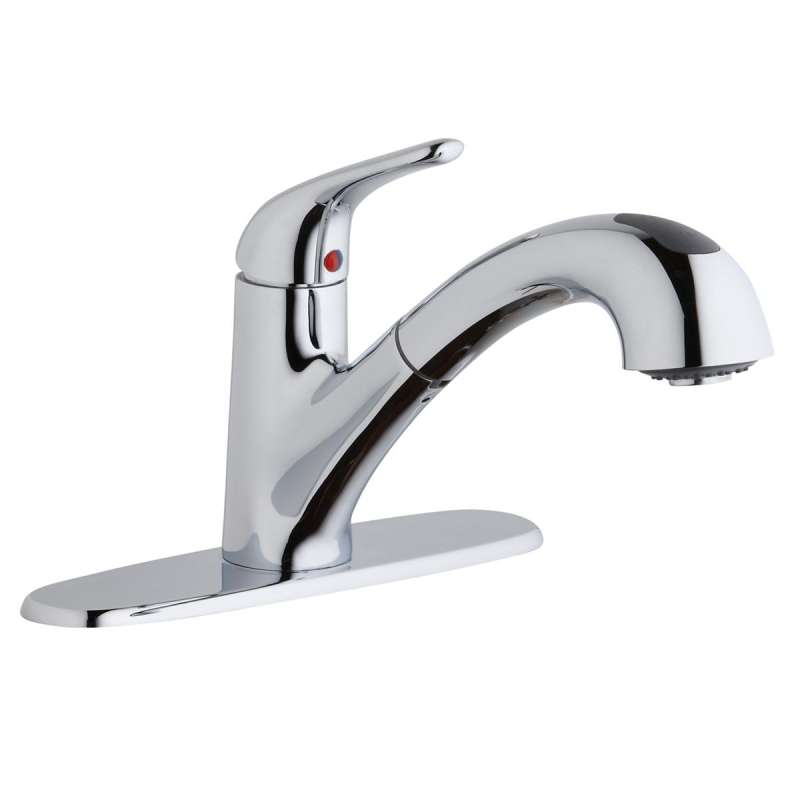

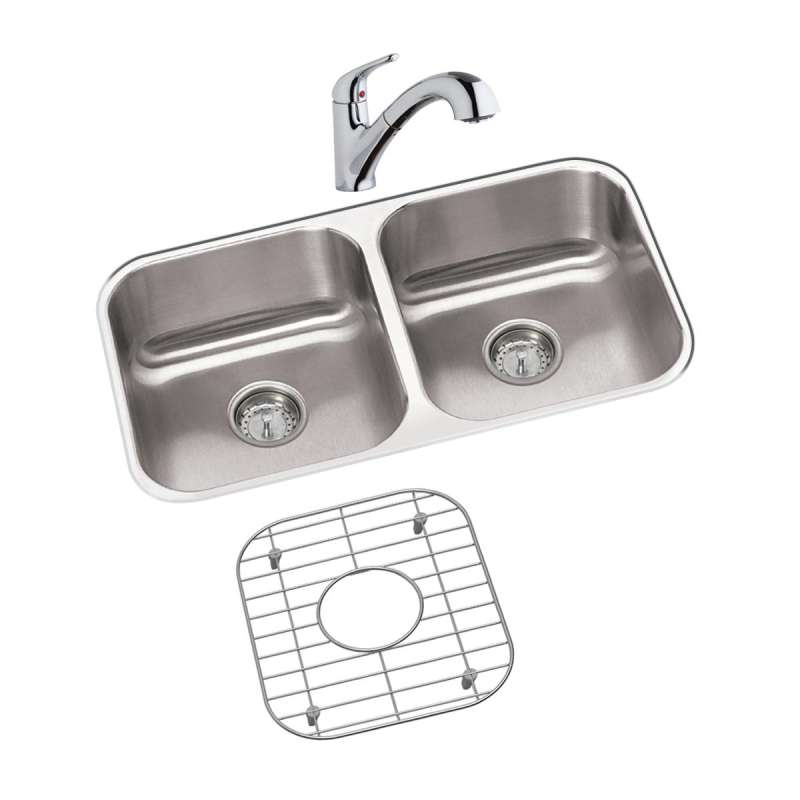

- KIT INCLUDES: DXUH3118 sink, LK5000CR faucet, one GBG1415SS bottom grid, two drains; conveniently packaged together to save you time
| ASME Standards | ASME A112.19.3; ASME A112.18.1; ASME A112.18.2 |
| Bowl Split | 50/50 |
| Brand | Elkay |
| CSA Standards | CSA B45.4; CSA B125.1; CSA B125.2 |
| Drain Placement Bowl 1 | Center Center |
| Drain Placement Bowl 2 | Center Center |
| Drain Size Bowl 1 | 3.5 |
| Drain Size Bowl 2 | 3.5 |
| Drainboard Type | No drainboard |
| Length Bowl 1 | 14 |
| Length Bowl 2 | 14 |
| Minimum Cabinet Size Inches | 36 |
| NPCC | Yes |
| NSF Standard 372 | Yes |
| NSF Standard 61 | Yes |
| Prop 65 Warning | Yes |
| Shape Bowl 1 | Rectangular |
| Shape Bowl 2 | Rectangular |
| Sink Depth | 8 |
| Sound Deadening | Bottom only pads |
| Specifications | Spec Sheet Installation Warranty |
| Width Bowl 1 | 15.75 |
| Width Bowl 2 | 16 |
| Product Type | Sink |
| Collection | Dayton® |
| Color | Radiant Satin |
| Width (in) | 18.25 |
| Length (in) | 31.75 |
| Height (in) | 8 |
| Material | Stainless Steel |
| Weight (lb) | 28.65 |
| Ada Compliant | No |
| Application | Residential/MultiFamily |
| Gauge | 18 |
| Installation | Undermount;Sink Kits |
| Lead Law Compliant | Yes |
| Number of Bowls | 2 |
| UPC Listed | cUPC |
