SMM_SMAPRK1610H-2-M
- In Production
- Brand: Samuel Mueller
- Model # SMAPRK1610H-2-M
-
Brushed Nickel -
Matte Black -
Polished Chrome

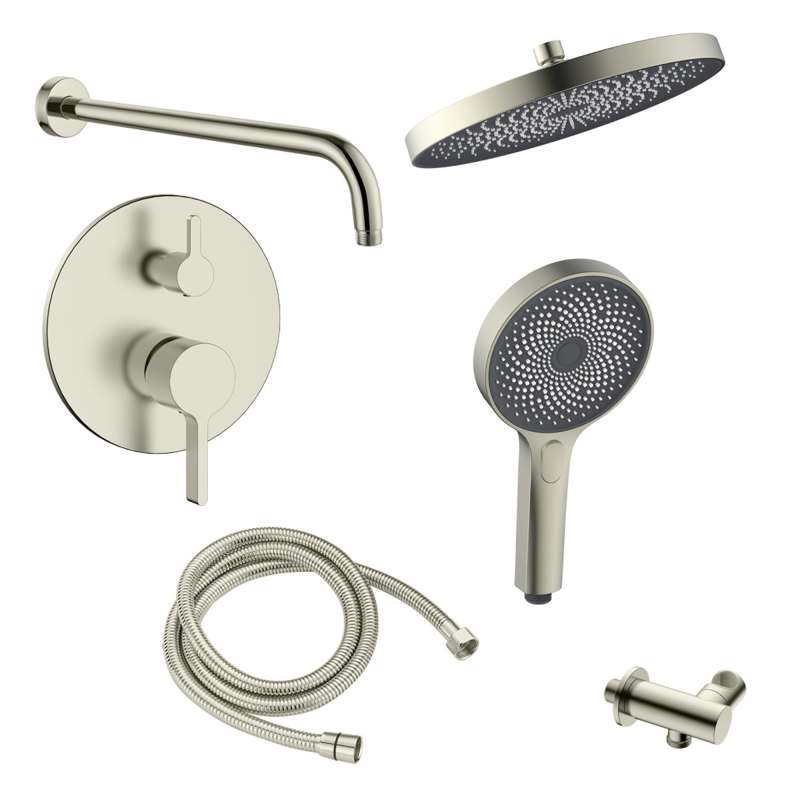

- Kit includes: (1) 10-in showerhead, (1) 16-in shower arm, (1) two function pressure balance valve and trim, (1) 5-in hand shower, (1) 59-in shower hose, and (1) wall elbow
- Showerhead: Astra single function 10.25-in diameter round ABS showerhead with silicone nozzles
- Showerhead spray mode: rain
- Shower arm: Rowan 15.75-in long round brass shower arm with 2.375-in diameter round brass flange cover
- Valve and trim: Theo two function round style pressure balance valve and trim with ADA compliant lever handles; solid brass with plastic built-in box
- Valve and trim has screw stop to adjust water flow rate and ceramic cartridge
- Hand shower: Astra three function 5.125-in diameter round ABS hand shower with silicone nozzles; select button switches between spray modes
- Hand shower spray modes: powder rain, intense powder rain, and combi rain
- 2.5 gpm showerhead and hand shower flow rate
- Shower hose: 59-in stainless steel
- Wall elbow: Rowan brass wall elbow with joint and hand shower cradle
- Lifetime Limited Residential Warranty / 1-Year Limited Commercial Warranty
| Guides & Documents | Spec Sheet Installation PDF |
| Product Type | Pressure Balance Shower Set |
| Collection | Astra |
| Width (in) | 10 |
| Length (in) | 16 |
| Height (in) | 10 |
| Material | Stainless steel/Brass |
| Shape | Round |
| Weight (lb) | 14 |
| Warranty | Lifetime Limited Residential Warranty / 1-Year Limited Commercial Warranty |
| Ada Compliant | Yes |
| Body Sprays Included | No |
| Cartridge Type | Ceramic |
| Component(s) Included | 10-in showerhead, 16-in shower arm, valve trim, hand shower, 59-in shower hose, and wall elbow with holder |
| Connection Size (in) | 0.5 |
| Connection Type | G |
| Diverter Included | Yes |
| Diverter Location | Valve trim plate |
| Escutcheon Diameter (in) | 7.125 |
| Escutcheon Included | Yes |
| Flow Rate (GPM) | 2.5 |
| Hand Shower Flow Rate (GPM) | 2.5 |
| Hand Shower Included | Yes |
| Hose Included | Yes |
| Hose Length (in) | 59 |
| Inlet Diameter (in) | 0.5 |
| Inlet Thread Type | NPT |
| Integrated Diverter | Yes |
| Number of Functions | 2 |
| Number of Handles | 2 |
| Number of Spray Settings | 1 |
| Pause Control | No |
| Pressure Balanced | Yes |
| Residential/Commercial | Residential and Commercial |
| Shower Arm Reach (in) | 16 |
| Shower Head Diameter (in) | 10 |
| Shower Head Flow Rate (GPM) | 2.5 |
| Shower Head Functions | Single-Function |
| Shower Head Included | Yes |
| Shower Head Shape | Round |
| Slide Bar Included | No |
| Spray Patterns | Rain |
| Thermostatic | No |
| Valve Included | Yes |
| Valve Type | Ceramic |
| Water Efficient | No |
| Watersense | No |
