SMAPSK1610HB-2-PC Astra Two Function Square ADA Pressure Balance With Hand Shower On Bar Set, Polished Chrome
- In Stock
- Brand: Samuel Mueller
- Model # SMAPSK1610HB-2-PC
-
Brushed Nickel -
Matte Black -
Polished Chrome

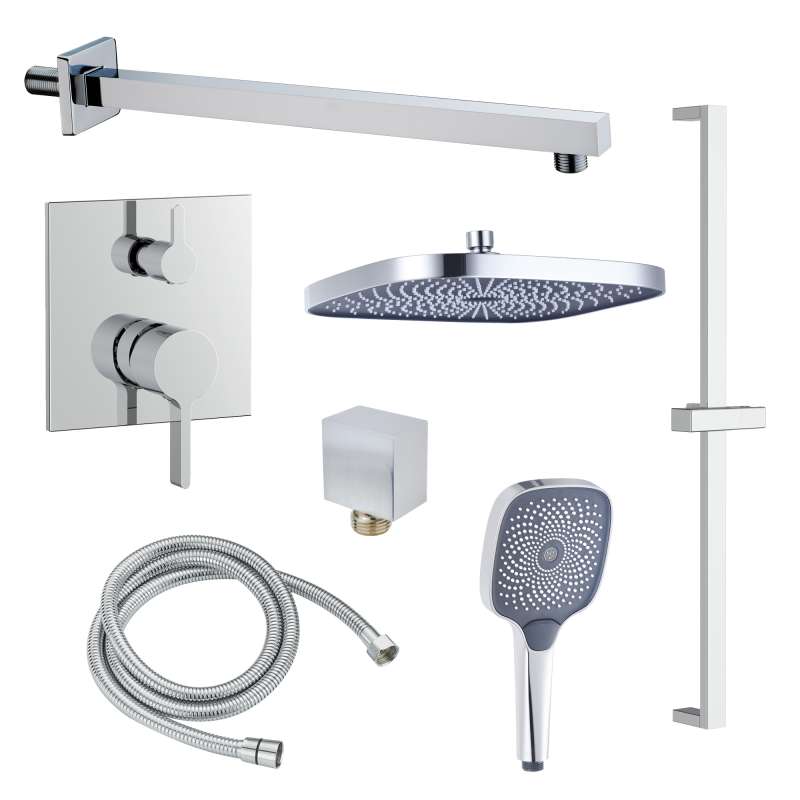

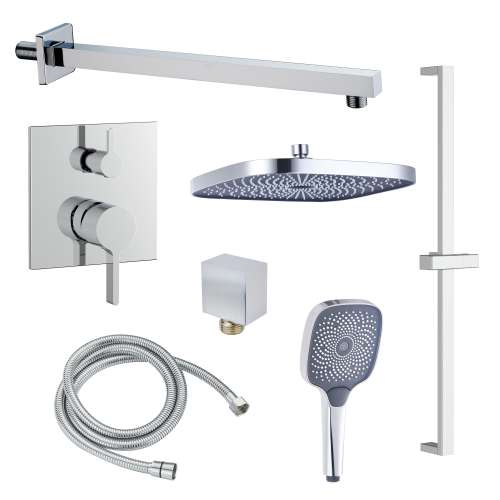

- Kit includes: (1) 10-in showerhead, (1) 16-in shower arm, (1) two function pressure balance valve and trim, (1) 5-in hand shower, (1) 30-in sliding bar, (1) 59-in shower hose, and (1) wall elbow
- Showerhead: Astra single function 10.25-in diameter square ABS showerhead with silicone nozzles
- Showerhead spray mode: rain
- Shower arm: Sampson 15.75-in long square brass shower arm with 2.3125-in diameter square brass flange cover
- Valve and trim: Theo two function square style pressure balance valve and trim with ADA compliant lever handles; solid brass with plastic built-in box
- Valve and trim has screw stop to adjust water flow rate and ceramic cartridge
- Hand shower: Astra three function 4.875-in wide square ABS hand shower with silicone nozzles; select button switches between spray modes
- Hand shower spray modes: boost, rain+boost, and column
- 2.5 gpm showerhead and hand shower flow rate
- Sliding bar: Sampson 30-in square 18-gauge 304 stainless steel sliding bar with escutcheon
- Shower hose: 59-in stainless steel
- Wall elbow: Manhattan brass wall elbow with joint
- Lifetime Limited Residential Warranty / 1-Year Limited Commercial Warranty
| Guides & Documents | Spec Sheet Installation PDF |
| Product Type | Pressure Balance Shower Set |
| Collection | Astra |
| Color | Polished Chrome |
| Width (in) | 10 |
| Length (in) | 16 |
| Height (in) | 10 |
| Material | Stainless steel/Brass |
| Shape | Square |
| Color/Finish Family | Chromes |
| Weight (lb) | 14 |
| Warranty | Lifetime Limited Residential Warranty / 1-Year Limited Commercial Warranty |
| Ada Compliant | Yes |
| Body Sprays Included | No |
| Cartridge Type | Ceramic |
| Component(s) Included | 10-in showerhead, 16-in shower arm, valve trim, hand shower with 30-in sliding bar, 59-in shower hose, and wall elbow |
| Connection Size (in) | 0.5 |
| Connection Type | G |
| Diverter Included | Yes |
| Diverter Location | Valve trim plate |
| Escutcheon Height (in) | 6.5 |
| Escutcheon Included | Yes |
| Escutcheon Width (in) | 6.5 |
| Flow Rate (GPM) | 2.5 |
| Hand Shower Flow Rate (GPM) | 2.5 |
| Hand Shower Included | Yes |
| Hose Included | Yes |
| Hose Length (in) | 59 |
| Inlet Diameter (in) | 0.5 |
| Inlet Thread Type | NPT |
| Integrated Diverter | Yes |
| Number of Functions | 2 |
| Number of Handles | 2 |
| Number of Spray Settings | 1 |
| Pause Control | No |
| Pressure Balanced | Yes |
| Residential/Commercial | Residential and Commercial |
| Shower Arm Reach (in) | 16 |
| Shower Head Flow Rate (GPM) | 2.5 |
| Shower Head Functions | Single-Function |
| Shower Head Included | Yes |
| Shower Head Shape | Square |
| Slide Bar Included | Yes |
| Spray Patterns | Rain |
| Thermostatic | No |
| Valve Included | Yes |
| Valve Type | Ceramic |
| Water Efficient | No |
| Watersense | No |
