Sale
SMATSHK1612-2-PC ArgoTherm Two Function Square Thermostatic Push Button With Three Function Hand Shower On Bar Set, Polished Chrome
- In Stock
- Brand: Samuel Mueller
- Model # SMATSHK1612-2-PC
Make a Selection
-
Brushed Nickel -
Matte Black -
Polished Chrome

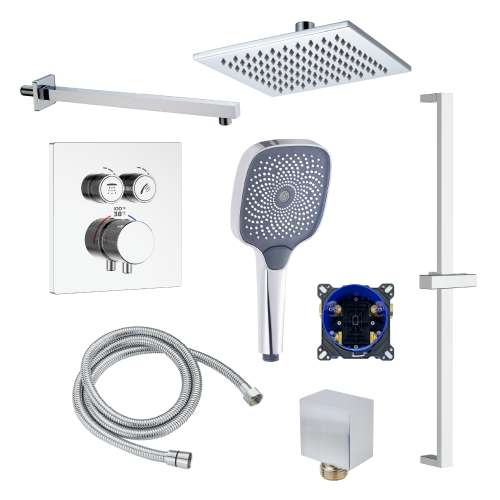

- Kit includes: (1) 12-in showerhead, (1) 16-in shower arm, (1) two function thermostatic valve and trim, (1) Forever Box, (1) 5-in hand shower, (1) 36-in sliding bar, (1) 59-in shower hose, and (1) wall elbow
- Showerhead: Camilla single function 11.75-in diameter square brass showerhead
- Showerhead spray mode: rain with air injection
- Shower arm: Sampson 15.75-in long square brass shower arm with 2.3125-in diameter square brass flange cover
- Valve and trim: ArgoTherm two function square style thermostatic valve and trim with push buttons; solid brass valve with stainless steel trim plate and handle
- Valve has French VERNET thermostatic cartridge
- Forever Box: solid brass body with plastic built-in box; 9 gpm flow rate
- Hand shower: Astra three function 4.875-in wide square ABS hand shower with silicone nozzles
- Hand shower spray modes: boost, rain+boost, and column
- 2.5 gpm showerhead and hand shower flow rate
- Sliding bar: Sampson 36-in square 18-gauge 304 stainless steel sliding bar with escutcheon
- Shower hose: 59-in stainless steel
- Wall elbow: Manhattan brass wall elbow with joint
- Lifetime Limited Residential Warranty / 1-Year Limited Commercial Warranty
| Guides & Documents | Spec Sheet Installation Sheet |
| Brand | Samuel Mueller |
| Product Type | Thermostatic Shower Set |
| Collection | ArgoTherm |
| Color | Polished Chrome |
| Width (in) | 12 |
| Length (in) | 16 |
| Height (in) | 12 |
| Material | Stainless Steel/Brass |
| Shape | Square |
| Color/Finish Family | Chromes |
| Weight (lb) | 14 |
| Warranty | Lifetime Limited Residential Warranty / 1-Year Limited Commercial Warranty |
| Ada Compliant | No |
| Body Sprays Included | No |
| Cartridge Type | Thermostatic |
| Component(s) Included | 12-in showerhead, 16-in shower arm, valve trim, hand shower with 36-in sliding bar, 59-in shower hose, and wall elbow |
| Connection Size (in) | 0.5 |
| Connection Type | G |
| Diverter Included | Yes |
| Diverter Location | Valve trim plate |
| Escutcheon Height (in) | 6.125 |
| Escutcheon Included | Yes |
| Escutcheon Width (in) | 6.125 |
| Flow Rate (GPM) | 2.5 |
| Hand Shower Flow Rate (GPM) | 2.5 |
| Hand Shower Included | Yes |
| Hose Included | Yes |
| Hose Length (in) | 59 |
| Inlet Diameter (in) | 0.5 |
| Inlet Thread Type | NPT |
| Integrated Diverter | Yes |
| Number of Functions | 2 |
| Number of Handles | 1 |
| Number of Spray Settings | 1 |
| Pause Control | No |
| Pressure Balanced | No |
| Residential/Commercial | Residential and Commercial |
| Scald Guard | Yes |
| Shower Arm Reach (in) | 16 |
| Shower Head Flow Rate (GPM) | 2.5 |
| Shower Head Functions | Single-Function |
| Shower Head Included | Yes |
| Shower Head Shape | Square |
| Slide Bar Included | Yes |
| Spray Patterns | Single spray function with air injection for showerhead; boost, rain+boost and column for hand shower |
| Temperature Control | Yes |
| Thermostatic | Yes |
| Valve Included | No |
| Valve Type | Thermostatic |
| Water Efficient | No |
| Watersense | No |
