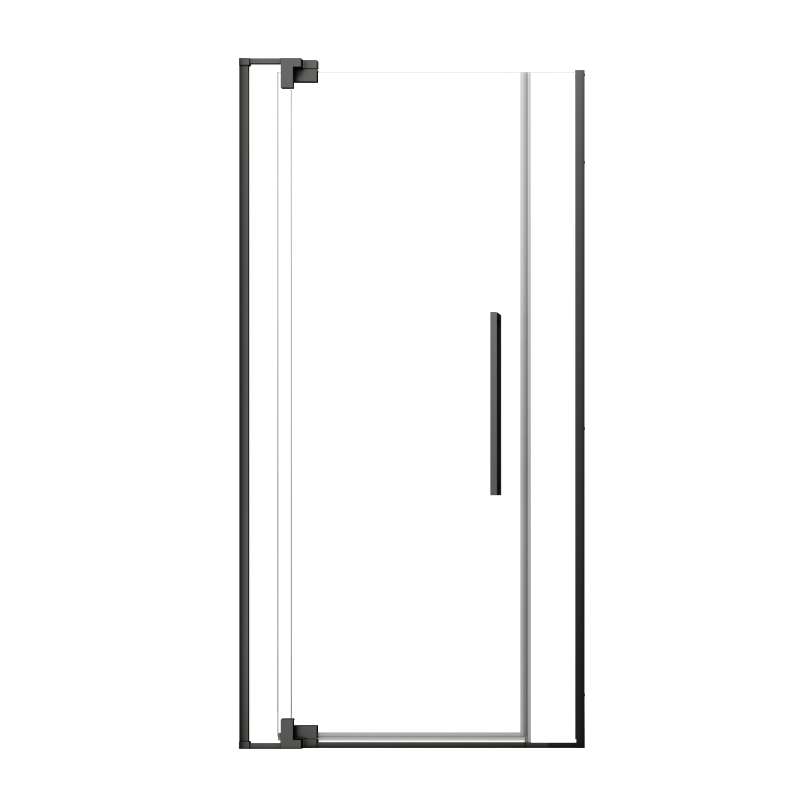

SMRDPD4276108C-MB Reverie Duo 42-in x 76-in Pivot Shower Door With 5/16-in Clear Glass And Sampson Double-Sided Handles, Matte Black
- In Stock
- Brand: Samuel Mueller
- Model # SMRDPD4276108C-MB
-
Clear / Brushed Stainless -
Clear / Champagne Bronze -
Clear / Matte Black -
Clear / Polished Chrome
- 39-in to 43-in W x 76-in H hinged pivot shower door with fixed panel and inline panel for an alcove shower
- Premium quality 3/8-in (10mm) thick tempered clear glass for the fixed/inline panels and 5/16-in (8mm) thick tempered clear glass for the door panel; tempered glass is ANSI Z97.1 certified
- Features special Nano Protected surface treatment that keeps glass looking clean
- Special design allows up to 3-in width adjustment excluding out of plumb adjustment
- Two wall profiles give up to 0.5-in out of plumb adjustment on each side of the door
- Self-centering hinges offer a smooth door closure and limit water leakage
- Sampson double-sided handles complete the look of this door; other handle options are available to purchase separately
- Door and fixed/inline panel are reversible for a left or right door opening
- No top heacher eliminates clearance issues while frameless design creates a minimalist look
- Walk-in opening of 27.875-in minimum to 30.875-in maximum
- Door requires a minimum 1-in of flat threshold space on the shower base for installation
- All reference measurements should be based on a finished opening; professional installation is recommended
- Lifetime Limited Residential Warranty / 1-Year Limited Commercial Warranty
| Guides & Documents | Spec Sheet Installation PDF |
| Brand | Samuel Mueller |
| Fixed Panel Width (in) | 5.375 |
| Glass Thickness (mm) | 8mm Door; 10mm Fixed Panels |
| Maximum Width (in) | 43 |
| Minimum Width (in) | 39 |
| Mounting Style | Hinged |
| Out Of Plumb Adjustment | 0.5-in on each side |
| Walk-Through Width (in) | 27.875 - 30.875 |
| Water-Repellent Coating | Nano ClearCoat Technology |
| Product Type | Shower Door |
| Collection | Reverie Duo |
| Color | Matte Black |
| Width (in) | 43 |
| Length (in) | 1 |
| Height (in) | 76 |
| Material | Glass, 304 Stainless Steel, Brass |
| Shape | Rectangular |
| Color/Finish Family | Blacks |
| Weight (lb) | 88.0000 |
| Warranty | Lifetime Limited Residential; 1-Year Limited Commercial |
| Ada Compliant | No |
| Door Adjustment | Yes |
| Door Frame | Frameless |
| Door Height (in) | 76 |
| Door Opening Height (in) | 76 |
| Door Type | Pivot |
| Glass Pattern | Clear |
| Glass Thickness (in) | 0.3125-in Door; 0.375-in Fixed Panels |
| Handle Type | Sampson Double-Sided |
| Hardware Included | Yes |
| Installation | Alcove Shower |
| Maximum Opening Width (in) | 43 |
| Maximum Walk-through Width (in) | 30.875 |
| Minimum Opening Width (in) | 39 |
| Minimum Walk-through Width (in) | 27.875 |
| Opening Style | Pivot |
| Required Base Depth (in) | 1 |
| Residential/Commercial | Residential and Commercial |
| Series | Clear / Matte Black |
| Slow Close | No |
| Towel Bar | No |
