Sale
6002001USMCA.020 Pintbrook 0.125 - 0.5 gpf 0.47 - 1.9 Lpf Top Spud Urinal, Made in Mexico, White
- In Production
- Brand: American Standard
- Model # 6002001USMCA.020

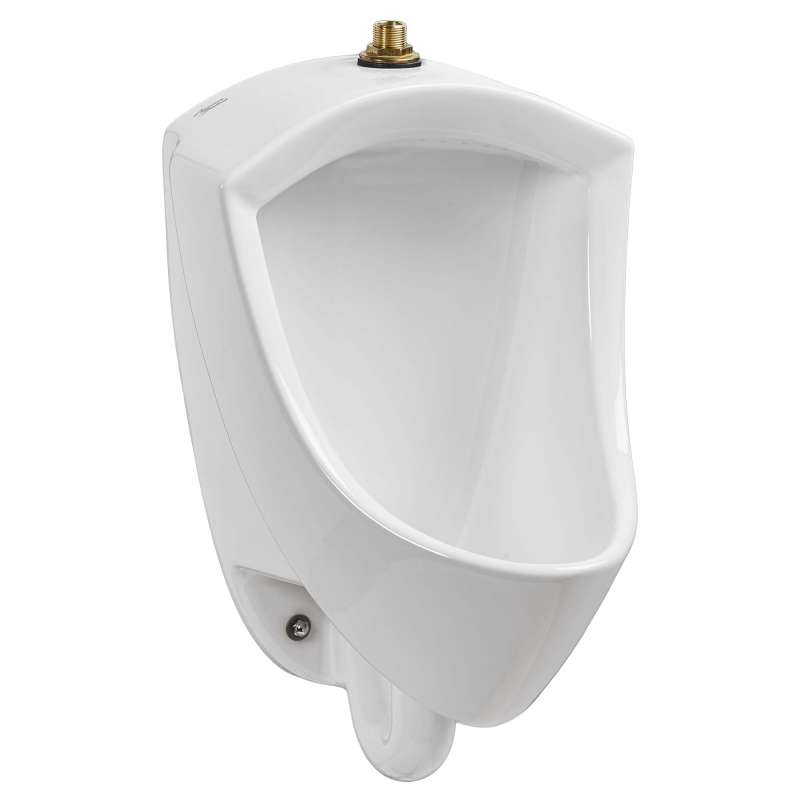

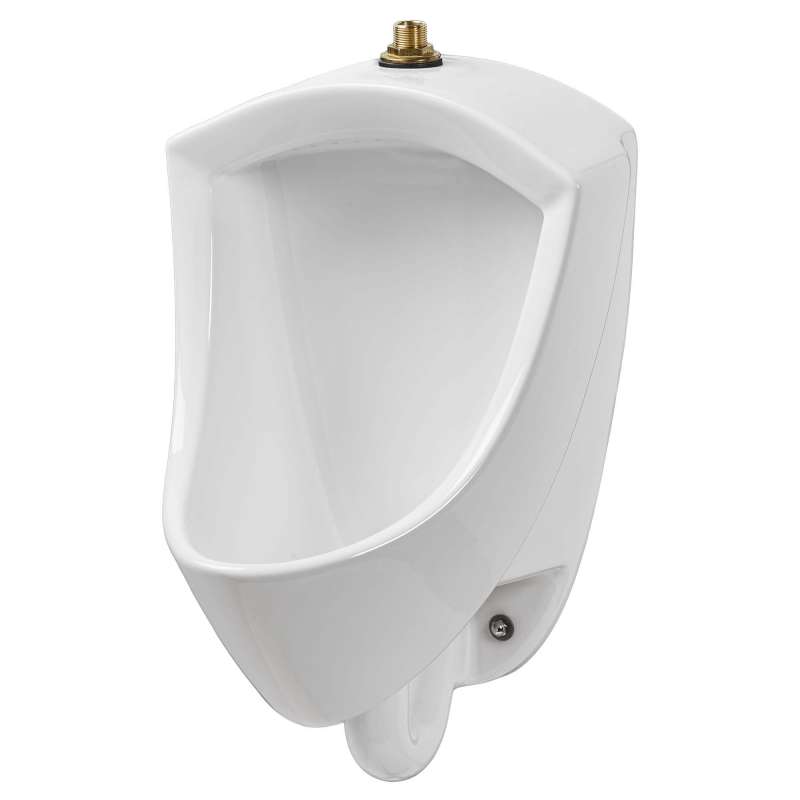

The Pintbrook Urinal from American Standard is a smart, High Efficiency washdown urinal, operating in the range of 0.125 gpf to 0.50 gpf (0.47 Lpf/1.9 Lpf) to help save water. This optimized design is expertly crafted to provide superior splash protection. Features a 3/4-in inlet top spud, and includes wall hangers for easy installation.
- High Efficiency Urinal (HEU) operates in the range of 0.125 gpf - 0.5 gpf (0.47 Lpf - 1.9 Lpf).
- Great 1-pint flush alternate to popular Allbrook urinal.
- Powerful washdown action.
- Optimized chinaware contours provide superior splash protection.
- 3/4-in (19 mm) inlet spud with 2-in (51 mm) threaded outlet connection.
- Fixture only.
- Made in Mexico (USMCA compliant).
- Chrome plated non-metallic strainer included.
| Guides & Documents | Spec Sheet Installation PDF |
| Brand | American Standard |
| Product Type | Urinal |
| Collection | Pintbrook |
| Color | White |
| Width (in) | 14.31 |
| Length (in) | 14.44 |
| Height (in) | 22.63 |
| Material | Vitreous china |
| Weight (lb) | 30.00 |
| Warranty | 1 Year Limited Warranty |
| Ada Compliant | Yes |
| Bowl Height (in) | 22.63 |
| Connection Size (in) | 2 |
| Connection Type | NPT |
| Depth (in) | 7 |
| Drain Size (in) | 4 |
| Eco Friendly | Yes |
| Everclean | N/A |
| Flush Rate (GPF) | 0.125 |
| Flush Technology | 1-pint flush |
| Flush Type | Manual |
| Number of Bowls | 1 |
| Residential/Commercial | Both |
| Spud Inlet Size (in) | 0.75 |
| Spud Location | Top |
| Spud Size (in) | 2 |
| Water Efficient | Yes |
| Watersense | Yes |
