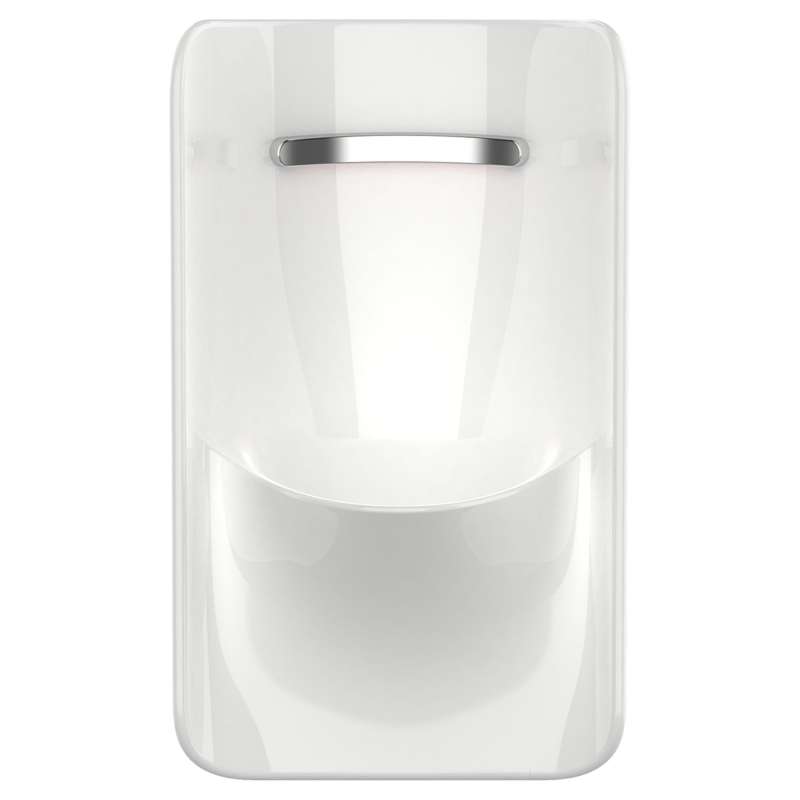

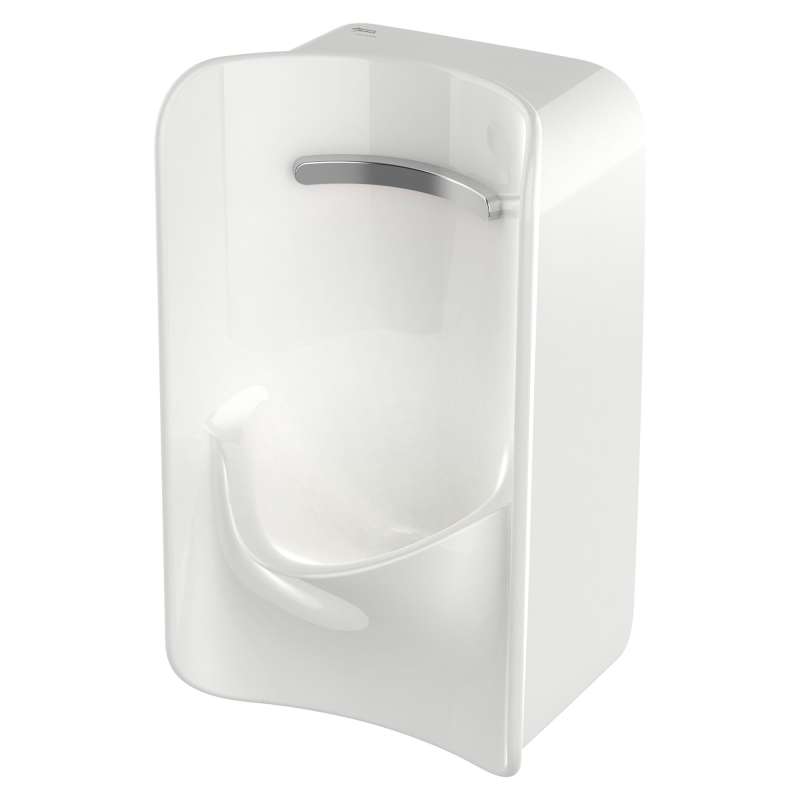

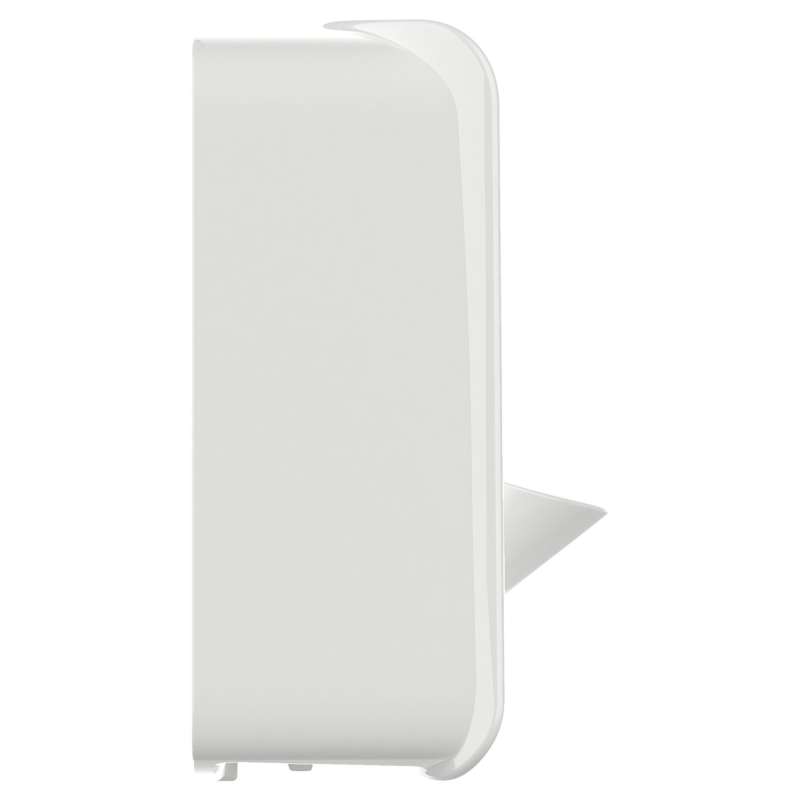

6517001EC.020 Glenbrook 0.125 - 0.5 gpf 0.47 - 1.9 Lpf Back Spud Urinal with EverClean, White
- In Production
- Brand: American Standard
- Model # 6517001EC.020
The Greenbrook Urinal from American Standard is defined by sleek curves designed for practicality and a clean, modern aesthetic. Optimized surface contours and water flushing spreader ensure a thorough rinse and superior splash protection.
- Highly aesthetic vitreous china urinal with large footprint.
- High Efficiency Urinal (HEU) operates in the range of 0.125 gpf - 0.5 gpf (0.47 Lpf - 1.9 Lpf).
- Urinal has optimized surface contours and water flushing spreader that rinses inverted back wall for superior splash protection.
- EverClean Antimicrobial Surface inhibits the growth of stain and odor causing bacteria, mold and mildew on the surface.
- 3/4-in (19 mm) inlet spud with 2-in (51 mm) threaded outlet connection.
- 3/4-in (19 mm) inlet spud with 2-in (51 mm) threaded outlet connection.
- Fixture only.
- Chrome plated non-metallic strainer included.
| Guides & Documents | Installation PDF |
| Brand | American Standard |
| Product Type | Urinal |
| Collection | Glenbrook |
| Color | White |
| Width (in) | 16.13 |
| Length (in) | 15.00 |
| Height (in) | 27.50 |
| Material | Vitreous china |
| Weight (lb) | 35.00 |
| Warranty | 1 Year Limited Warranty |
| Ada Compliant | Yes |
| Bowl Height (in) | 27.50 |
| Connection Size (in) | 2 |
| Connection Type | NPT |
| Depth (in) | 10 |
| Drain Size (in) | 4 |
| Eco Friendly | Yes |
| Everclean | Yes |
| Flush Rate (GPF) | 0.125 |
| Flush Technology | 1-pint flush |
| Flush Type | Manual |
| Number of Bowls | 1 |
| Residential/Commercial | Both |
| Spud Inlet Size (in) | 0.75 |
| Spud Location | Back |
| Spud Size (in) | 2 |
| Water Efficient | Yes |
| Watersense | Yes |
