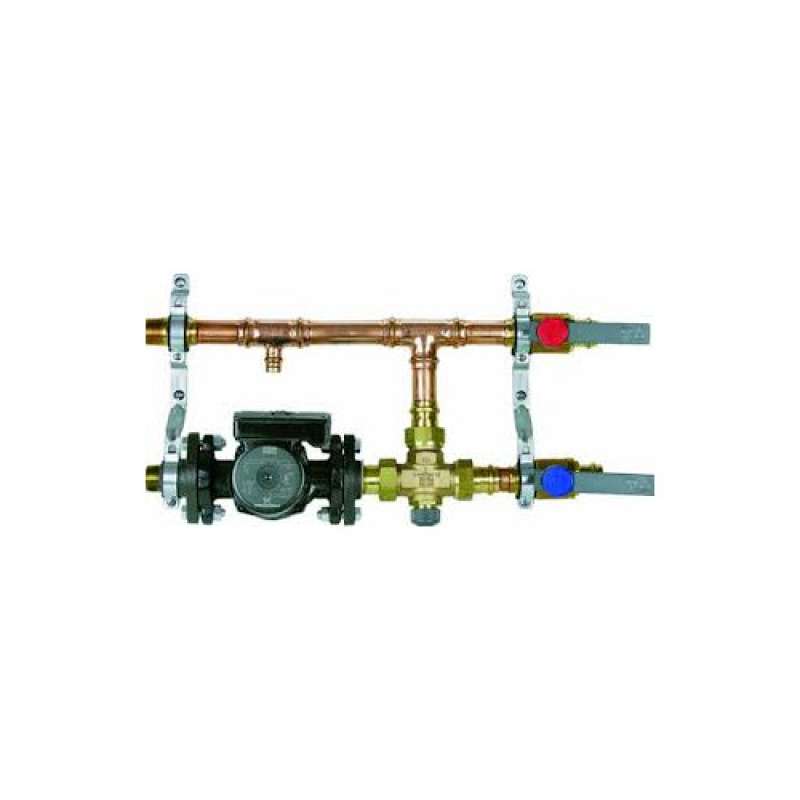

The new Viega Mixing Station provides supply water temperature modulation when connected to a variety of heat sources such as conventional or condensing boilers, water heaters, or geothermal heat pumps. Stations are now available with 3-speed circulator pumps with high head. Boiler connections can be made with ProPress, PEX Press Adapters, or Copper (male) for soldering. Red and blue caps on the ProPress Ball Valves clearly indicate system supply and return connections. A built in sensor well allows easy mounting of the supply temperature sensor for the Basic Heating Control.

• Ready to Hang, Factory Tested
• Ideal for Direct Connect or Remote Locations
• Can be Manually or Electronically Adjusted
• Versatile Boiler Side Connections
• Compatible with Most Heat Sources
• 3-Speed Low Head Circulator Pump
• Flow Range: 0 - 17.5 U.S. GPM
• Head Range: 0 - 19 feet
• Motor: 2 Pole, Single Phase, 120V
• Maximum fluid temperature: 230 Degrees F (110 Degrees C)
• Minimum fluid temperature: 36 Degrees F (2 Degrees C)
• Maximum working pressure: 145 PSI
